Tungsten Carbide Diamond Positive Turning Blank with Hole
Tungsten Carbide Diamond Positive Turning Blank with Hole
SKU:TUR-8b57cd
High-grade Tungsten Carbide Turning Blank with precise i.c. measurements for industrial turning applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Tungsten Carbide Diamond Positive Turning Blank with Hole
$49.99
Quantity: 1
Claim Your Seller Account
Tungsten Carbide Diamond Positive Turning Blank with Hole
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tungsten Carbide Diamond Positive Turning Blank with Hole is engineered for precision turning applications, featuring an Inscribed Circle (i.c.) ranging from 0.511 to 0.519 inches. This turning blank offers ultra-met optional grades like UF108 and Z23, ensuring exceptional durability and performance. With a Radius of 1/32 inches and a Hole diameter of 0.219 to 0.223 inches, this blank is designed to meet the rigorous demands of industrial machining and turning processes.

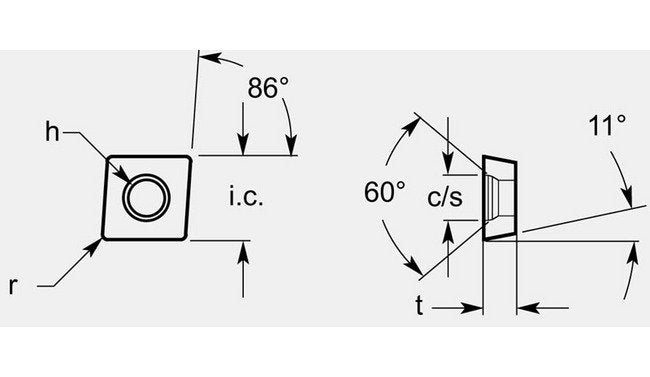

Product Specifications
Classifications Cs
0.276 / 0.282 in
Classifications Hole H
0.219 / 0.223 in
Classifications Inscribed Circle Ic
0.511/0.519 in
Classifications Radius R
1/32 in
Classifications Thickness T
0.194 / 0.200 in
Classifications Ultra Met Optional Grades
UF108 Ultra Fine Tungsten Carbide | UF110 Ultra Fine Tungsten Carbide | UF112 Ultra Fine Tungsten Carbide | UF115 Ultra Fine Tungsten Carbide | UF306 Ultra Fine Tungsten Carbide | Z1 Extra Fine Tungsten Carbide | Z13 Medium / Coarse Tungsten Carbide | Z14 Fine / Medium Tungsten Carbide | Z15 Fine to Coarse Tungsten Carbide | Z20 Fine Tungsten Carbide | Z22 Fine Tungsten Carbide | Z23 Extra Fine Tungsten Carbide | Z4 Extra Fine Tungsten Carbide | Z50 Medium Tungsten Carbide | Z52 Fine / Medium Tungsten Carbide | Z54 Medium Tungsten Carbide | Z55 Fine / Medium Tungsten Carbide | Z56 Medium / Coarse Tungsten Carbide | Z57 Medium / Coarse Tungsten Carbide | Z60 Fine Tungsten Carbide | Z70 Fine Tungsten Carbide | Z72 Fine Tungsten Carbide | Z76 Extra Fine Tungsten Carbide | Z9 Extra Fine Tungsten Carbide | ZC13 Coarse Tungsten Carbide | ZC14 Cermet and Nickel | ZC3 Cermet and Nickle | ZC5 Cermet and Nickel | ZC9 Coarse Tungsten Carbide | ZM12 Medium / Coarse Tungsten Carbide | ZM15 Medium / Coarse Tungsten Carbide | ZM18 Coarse Tungsten Carbide | ZM6 Coarse Tungsten Carbide | ZM9 Medium / Coarse Tungsten Carbide | ZN8 Cermet and Nickel | ZS16 Medium Tungsten Carbide | ZS17 Medium Tungsten Carbide | ZS18 Fine Tungsten Carbide | ZS19 Fine Tungsten Carbide
Grade Availability Grade Availability
Available on Request
