Tungsten E-Beam Liner - 7cm³ RDM-EB4 Series
Tungsten E-Beam Liner - 7cm³ RDM-EB4 Series
SKU:RDM-c4ed4e
High-performance Tungsten E-Beam Liner for precise evaporation in 7cm³ size, ideal for industrial & research applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Tungsten E-Beam Liner - 7cm³ RDM-EB4 Series
$129.99
Quantity: 1
Claim Your Seller Account
Tungsten E-Beam Liner - 7cm³ RDM-EB4 Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

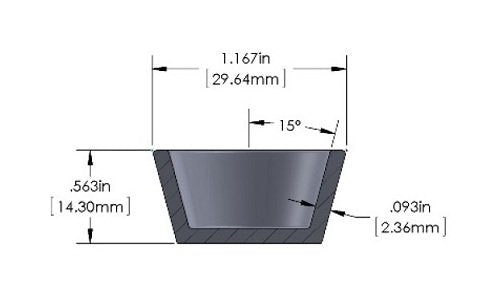

The Tungsten E-Beam Liner in the 7cm³ RDM-EB4 Series from R.D. Mathis is a precision-engineered crucible container designed for high-performance electron beam evaporation systems. Crafted from Tungsten, this liner boasts a compact size of 7 cubic centimeters, with dimensions of 0.563in (14.30mm) in height, 1.167in (29.64mm) in width, and an angle of 15° for efficient material deposition. The robust wall thickness of 0.093in (2.36mm) ensures durability and longevity, making it a reliable choice for industrial and research applications. Custom sizes are available upon request, and bulk discounts make it cost-effective for volume orders.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.563 in | 14.30 mm
Specifications Material
Tungsten
Specifications Size
7 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
1.167 in | 29.64 mm
