Tungsten E-Beam Liner - RDM-EB6 Series 40 cm³
Tungsten E-Beam Liner - RDM-EB6 Series 40 cm³
SKU:RDM-a75f2a
Achieve precise and reliable material deposition with the Tungsten E-Beam Liner from R.D. Mathis. Custom sizes available.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Tungsten E-Beam Liner - RDM-EB6 Series 40 cm³
$129.99
Quantity: 1
Claim Your Seller Account
Tungsten E-Beam Liner - RDM-EB6 Series 40 cm³
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

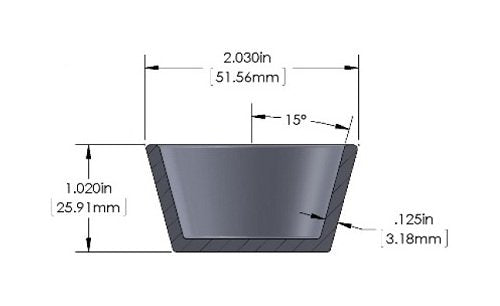

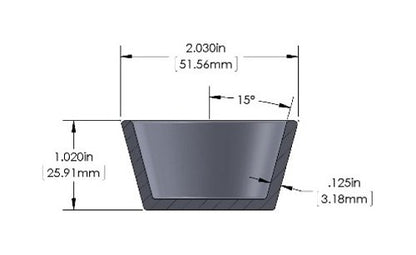

The RDM-EB6 Series 40 cm³ Tungsten E-Beam Liner by R.D. Mathis Company is designed for high-performance electron beam evaporation processes. Constructed with durable tungsten material, this crucible-type liner features precise dimensions of 2.030" in width, 1.020" in height, and a wall thickness of 0.125". With a 15º angle for optimal material deposition, this liner ensures consistent and reliable performance. Custom sizes available upon request. Bulk order discounts offered, making it ideal for institutional and large-scale industrial applications.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
1.020 in | 25.91 mm
Specifications Material
Tungsten
Specifications Size
40 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
2.030 in | 51.56 mm
