Tungsten E-Beam Liner - RDM-EB9 Series 30cm³
Tungsten E-Beam Liner - RDM-EB9 Series 30cm³
SKU:RDM-859cc4
Enhance your evaporation system with the Tungsten E-Beam Liner - RDM-EB9 Series 30cm³ for precise control and durability during deposition processes.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Tungsten E-Beam Liner - RDM-EB9 Series 30cm³
$149.99
Quantity: 1
Claim Your Seller Account
Tungsten E-Beam Liner - RDM-EB9 Series 30cm³
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RDM-EB9 Series Tungsten E-Beam Liner is a reliable solution for high-performance electron beam evaporation systems. With a 30cm³ capacity, this Crucible Container Liner offers precise control and durability. Crafted from tungsten, it ensures excellent heat resistance and material compatibility. Perfect for industrial and research applications, it meets stringent quality standards for optimal performance in vacuum deposition processes. Custom sizes available upon request.

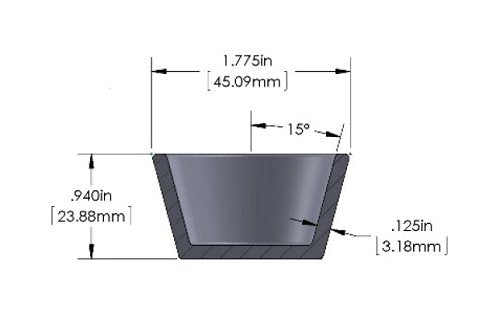

Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.940 in | 23.88 mm
Specifications Material
Tungsten
Specifications Size
30 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
1.775 in | 45.09 mm
