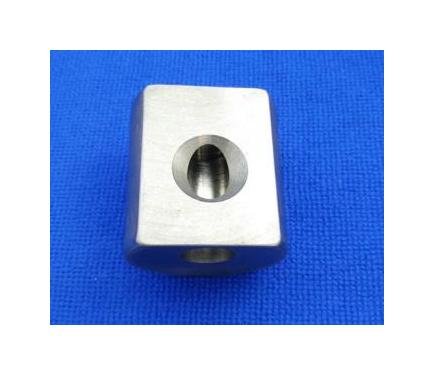

Tungsten Gamma Ray Collimator Shield
Tungsten Gamma Ray Collimator Shield
SKU:TUN-e00406
Advanced Tungsten Shield for Radiopharmaceutical Handling, Superior Protection & Design
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Tungsten Gamma Ray Collimator Shield
$299.99
Quantity: 1
Claim Your Seller Account
Tungsten Gamma Ray Collimator Shield
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tungsten Gamma Ray Collimator Shield by MarShield™ is a cutting-edge solution designed for reducing hand exposure during the preparation and administration of radiopharmaceuticals. Crafted with high-density tungsten boasting 18.89 g/cm³, this shield offers superior attenuation rates for Co-60, Ir-192, and Se-75 isotopes. With a sleek design, weighing only 0.79 kg (1.75 lb), this shield provides reliable protection against X-ray and gamma radiation. Its conical side throw beam angle of 60º ensures maximum safety for clinicians. Additionally, MarShield™ offers customization services to tailor the shield to specific requirements.
Product Specifications
Additional Information Additional Information
We offer over 20 different shield types and sizes including Tungsten Vial Transport Containers.Vial Syringe ShieldsVial PigsVial Transport ContainersSharps Container ShieldsWe also custom design and manufacture to your specific requirements. Just ask!
Dimensions Diameter
1.5 in
Dimensions Length
1.88 in
Specifications Attenuation
Co-60: 0.46 Ir-192: 0.05 Se-75: 5.3 E-3
Specifications Conical Side Throw Beam Angle
60 º
Specifications Half Value Layers
Co-60: 1.12 Ir-192: 4.30 Se-75: 17.5
Specifications High Density
18.89 g/cm³
Specifications Weight
0.79 kg | 1.75 lb
Tungsten Advantages Tungsten Advantages
Reliable ProtectionMaximum Absorption RateEqual Absorption at 1/3 Less MaterialBoth X-ray and Gamma Radiation AbsorptionNon-hazardous
