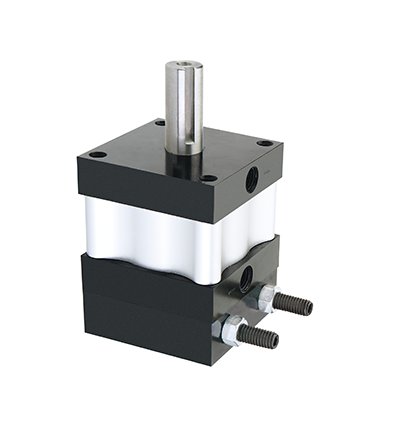

Turn-Act 180-Degree Rotary Vane Actuator
Turn-Act 180-Degree Rotary Vane Actuator
SKU:ROT-ff3cd3
Enhance industrial operations with the Turn-Act 180-Degree Rotary Vane Actuator's unmatched precision and reliability.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Turn-Act 180-Degree Rotary Vane Actuator
$899.99
Quantity: 1
Claim Your Seller Account
Turn-Act 180-Degree Rotary Vane Actuator
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Turn-Act 180-Degree Rotary Vane Actuator by Compact Automation Products offers unmatched precision and reliability for various industrial applications. With a rotational output of a single shaft at a maximum torque of 175 in·lb, this actuator ensures seamless operation under pressures ranging from 35 to 200 psi. It features a compact aluminum body, patented Urethane seals for longevity, and an optional stop cushioning and position feedback. The actuator's design guarantees zero backlash, precise repeatability, and continuous full torque throughout the rotation, making it a top choice for institutions seeking efficiency and durability.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
4.4 in
Specifications Maximum Torque
175 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
180 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
