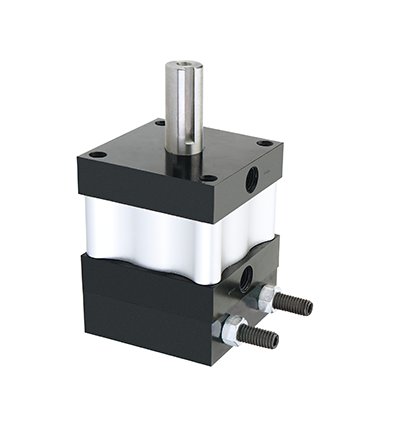

Turn-Act 180° Rotary Vane Actuator - 500 in·lb Torque
Turn-Act 180° Rotary Vane Actuator - 500 in·lb Torque
SKU:ROT-8ddcef
Efficiently control rotational motion with the Turn-Act 180° Rotary Vane Actuator - 500 in·lb Torque, designed for precision and durability.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Turn-Act 180° Rotary Vane Actuator - 500 in·lb Torque
$699.99
Quantity: 1
Claim Your Seller Account
Turn-Act 180° Rotary Vane Actuator - 500 in·lb Torque
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Turn-Act Rotary Vane Actuator offers a 180-degree rotation angle and a maximum torque of 500 in·lb, making it ideal for precise and efficient rotational motion control. With options for hydraulic or pneumatic technology, single shaft design, and patented urethane seals, this actuator ensures zero backlash, continuous full torque, and long cycle life. Features like stop cushioning and position feedback enhance performance, while meeting stringent industry standards for reliability and durability.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
10.38 in
Specifications Maximum Torque
500 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
180 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
