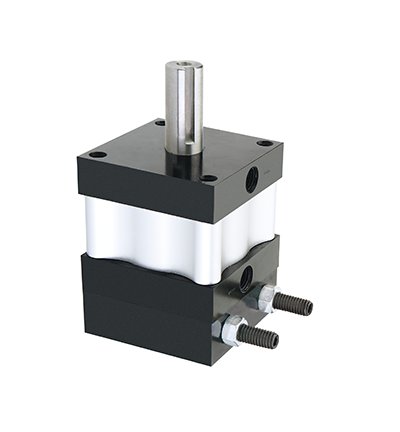

Turn-Act 90 Degree Rotary Vane Actuator
Turn-Act 90 Degree Rotary Vane Actuator
SKU:ROT-67158b
Enhance precision with the Turn-Act 90° Rotary Vane Actuator's 700 in·lb torque and patented seals for durability. Ideal for industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Turn-Act 90 Degree Rotary Vane Actuator
$399.99
Quantity: 1
Claim Your Seller Account
Turn-Act 90 Degree Rotary Vane Actuator
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Turn-Act 90 Degree Rotary Vane Actuator offers precise rotational output with a maximum torque of 700 in·lb. Featuring patented urethane seals for durability, this actuator ensures zero backlash, continuous full torque, and precise repeatability. With options for stop cushioning and position feedback, it caters to diverse applications, providing seamless performance in industrial settings.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
7.42 in
Specifications Maximum Torque
700 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
90 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
