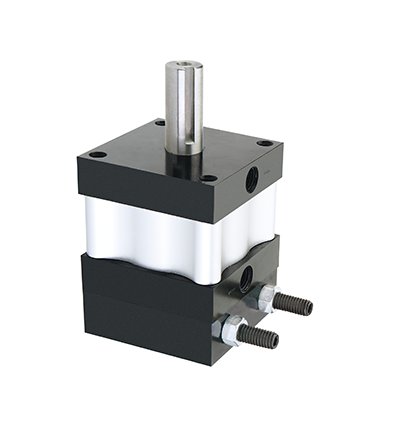

Turn-Act 90 Degree Rotary Vane Actuator
Turn-Act 90 Degree Rotary Vane Actuator
SKU:ROT-19ba34
Innovative Turn-Act Rotary Vane Actuator with 90° rotation, 1000 in·lb torque, and zero backlash for precise motion control.
Regular price
$649.99
Regular price
Sale price
$649.99
Unit price
per
Initiate Order
Turn-Act 90 Degree Rotary Vane Actuator
$649.99
Quantity: 1
Claim Your Seller Account
Turn-Act 90 Degree Rotary Vane Actuator
$649.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Turn-Act 90 Degree Rotary Vane Actuator is a high-performance solution designed by Compact Automation Products. With a maximum torque of 1000 in·lb and a rotational output shaft, this rotary vane actuator offers precise repeatability, continuous full torque, and zero backlash. It features patented urethane seals for long cycle life and non-lube service, making it a reliable choice for various applications. Optional stop cushioning and position feedback enhance its versatility, while options for rotations at 45, 90, 180, and 270 degrees provide flexibility to meet specific requirements.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
10.38 in
Specifications Maximum Torque
1000 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
90 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
