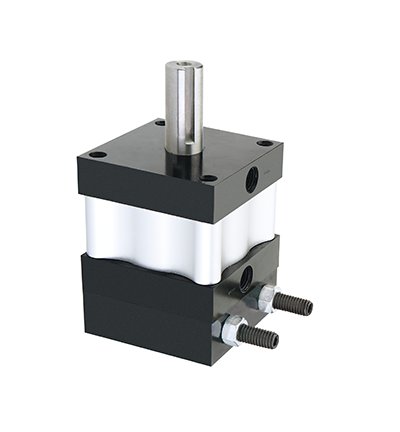

Turn-Act Rotary Vane Actuator - 180 Degree Rotation, 350 in·lb Torque
Turn-Act Rotary Vane Actuator - 180 Degree Rotation, 350 in·lb Torque
SKU:ROT-2fb7cd
Get precision and power with the Turn-Act Rotary Vane Actuator - 180° rotation, 350 in·lb torque. Durable, reliable, and versatile.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Turn-Act Rotary Vane Actuator - 180 Degree Rotation, 350 in·lb Torque
$499.99
Quantity: 1
Claim Your Seller Account
Turn-Act Rotary Vane Actuator - 180 Degree Rotation, 350 in·lb Torque
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Turn-Act Rotary Vane Actuator offers precise rotation with a 180-degree angle and a maximum torque of 350 in·lb. Featuring a single shaft design, aluminum body, and patented urethane seals for durability. Enjoy continuous full torque, zero backlash, and precise repeatability for optimal performance. Optional features include stop cushioning and position feedback, making it adaptable to various applications.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
7.42 in
Specifications Maximum Torque
350 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
180 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
