Turnbuckles Hook & Hook, Hot Dip Galvanized, Federal Spec FF-T-791b Type 1 Class 5 - 5/8" x 12"
Turnbuckles Hook & Hook, Hot Dip Galvanized, Federal Spec FF-T-791b Type 1 Class 5 - 5/8" x 12"
SKU:WIR-c5cbda
High-quality Hot Dip Galvanized Turnbuckles Hook & Hook meeting Federal Spec FF-T-791b standards for safety and reliability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Turnbuckles Hook & Hook, Hot Dip Galvanized, Federal Spec FF-T-791b Type 1 Class 5 - 5/8" x 12"
$39.99
Quantity: 1
Claim Your Seller Account
Turnbuckles Hook & Hook, Hot Dip Galvanized, Federal Spec FF-T-791b Type 1 Class 5 - 5/8" x 12"
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

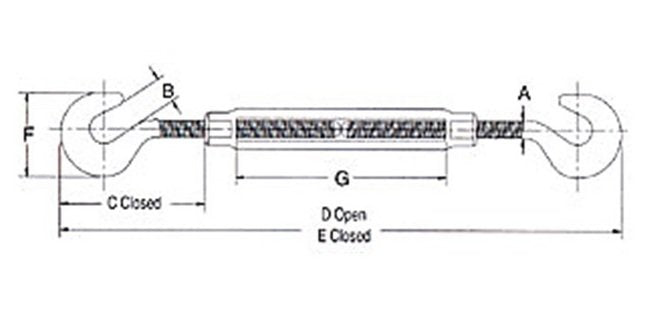

The Hot Dip Galvanized Drop Forged Turnbuckles Hook & Hook meet Federal Specification FF-T-791b, Type 1, Form 1 - Class 5 standards. These turnbuckles are designed for durability and reliability. The end fittings are quenched and tempered, while the bodies are normalized, ensuring strength and toughness. With a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, these turnbuckles provide a high level of safety and performance. Dimensions approximately A: 0.63", B: 0.84", C Closed: 3.69", D Open: 33.25", E Closed: 21.25", F: 2.81", G: 12".
Product Specifications
Specifications A
0.63
Specifications B
0.84
Specifications C Closed
3.69
Specifications D Open
33.25
Specifications E Closed
21.25
Specifications F
2.81
Specifications G
12
Specifications Thread Dia Take Up In
5/8 x 12
Specifications Weight
3.5
Specifications Wll Lbs
2250
