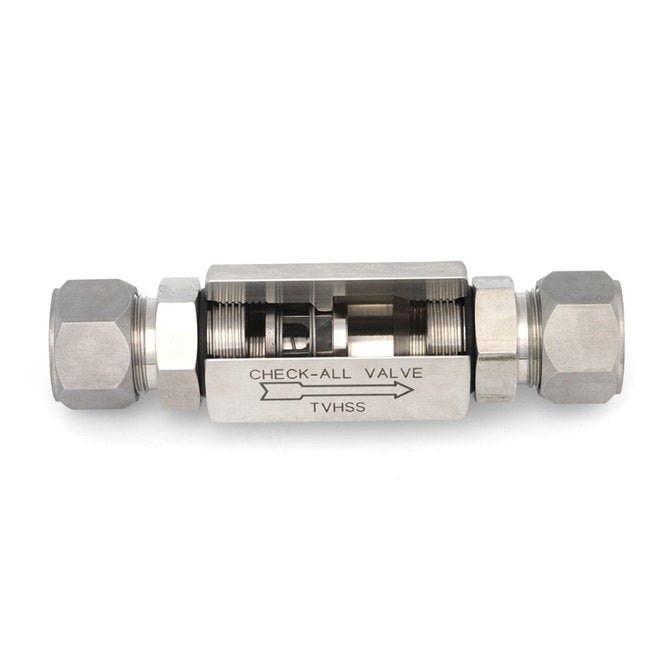

TV Style Tubing Check Valve - 3/8 in Line Size, 1.50 psi Cracking Pressure
TV Style Tubing Check Valve - 3/8 in Line Size, 1.50 psi Cracking Pressure
SKU:TVS-7d6044
High-quality TV Style Tubing Check Valve with compression tube fittings for precise control at low pressures.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
TV Style Tubing Check Valve - 3/8 in Line Size, 1.50 psi Cracking Pressure
$49.99
Quantity: 1
Claim Your Seller Account
TV Style Tubing Check Valve - 3/8 in Line Size, 1.50 psi Cracking Pressure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TV Style Tubing Check Valve offers reliable performance with compression tube fittings, ideal for low pressure applications. Constructed with quality materials like 316 Stainless Steel, it provides a secure seal with customizable spring settings. This valve meets European Conformity (CE) PED, ISO 9001, and other industry standards, ensuring top-notch quality and compliance. Perfect for industrial and institutional use.
Product Specifications
Note
Consult the factory for instrumentation applications or for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Line Size
3/8 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
5000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
C
Specifications Special Options
O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Standard End Fitting O Ring Material
Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF
Specifications Valve Style
TV
