Two Motor Driven Underhung Single Girder Crane - 3 Tons Capacity
Two Motor Driven Underhung Single Girder Crane - 3 Tons Capacity
SKU:REL-2aa576
Top-performing 3-ton capacity motorized crane for extreme conditions and indoor/outdoor use.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Two Motor Driven Underhung Single Girder Crane - 3 Tons Capacity
$8,999.99
Quantity: 1
Claim Your Seller Account
Two Motor Driven Underhung Single Girder Crane - 3 Tons Capacity
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

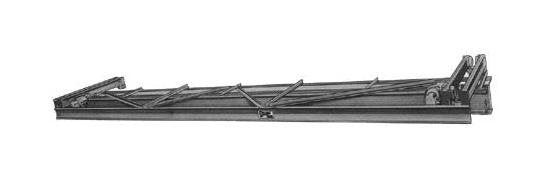

The Two Motor Driven Underhung Single Girder Crane is designed for reliable overhead operations in extreme conditions. With a 3-ton capacity, S series bridge girders for enhanced stability, and a 30'-0" span, this crane ensures top performance. It features Model USD Motorized Cranes, a durable Girder Size of S15 x 42.9C, and Wheel Load of 4155 lbs. Ideal for indoor and outdoor use, this crane offers precise control and efficiency for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
3 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2905 lbs.

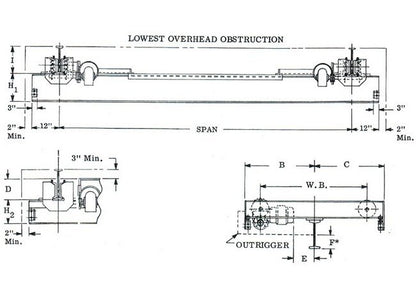

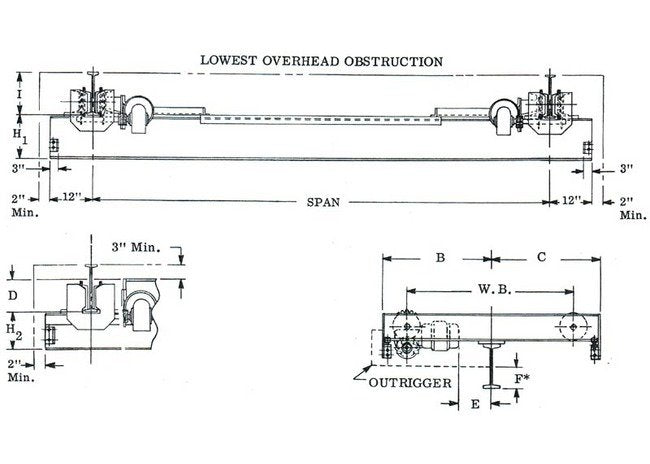

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
6 inches
Specifications Dimension E
12 inches
Specifications Dimension H1
16 inches
Specifications Dimension H2
9 inches
Specifications Electric
&nbps;
Specifications Girder Size
S15 x 42.9C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S12 x 31.8
Specifications Min Runway Rail
S8 x 18.4
Specifications Model
Model USD Motorized Cranes
Specifications Span
30'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
5'-0"
Specifications Wheel Diameter
5 inches
Specifications Wheel Load Per Pair
4155 lbs.
