Two-Speed Hand Operated Hydraulic Pumps without Reservoirs - CP-LR Series
Two-Speed Hand Operated Hydraulic Pumps without Reservoirs - CP-LR Series
SKU:HYD-7a2b17
Enhance machinery performance with Two-Speed Hand Operated Hydraulic Pumps - CP-LR Series. Maximize force efficiently with rapid low to high-pressure transitions.
Regular price
$845.00
Regular price
Sale price
$845.00
Unit price
per
Initiate Order
Two-Speed Hand Operated Hydraulic Pumps without Reservoirs - CP-LR Series
$845.00
Quantity: 1
Claim Your Seller Account
Two-Speed Hand Operated Hydraulic Pumps without Reservoirs - CP-LR Series
$845.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

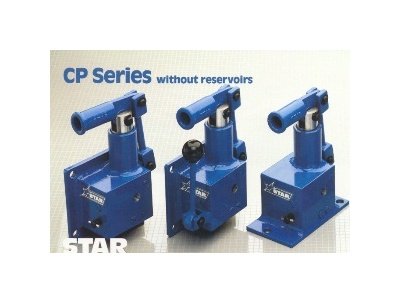

Upgrade your hydraulic equipment with the Two-Speed Hand Operated Hydraulic Pumps from the CP-LR Series. These pumps, designed for base or flange mounting without oil reservoirs, are ideal for machinery with built-in reservoirs. With adjustable overload relief valves and manual pressure release valves, they provide rapid movement at low pressure and automatic switch to high pressure when maximum force is required. Features include steel pump bodies, hard chrome-plated pistons, and a maximum pressure rating of 10,000 psi. Choose reliable performance and efficiency for your hydraulic systems with the CP-LR Series.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 1000 Psi
12.0 lb
Specifications List Price
845 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
10000 psi
Specifications Mounting
Base Mounted
Specifications Net Weight
23 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
2-1/2 in
Specifications Release
Cam Release
Specifications Series
CP-LR
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
4.71 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
