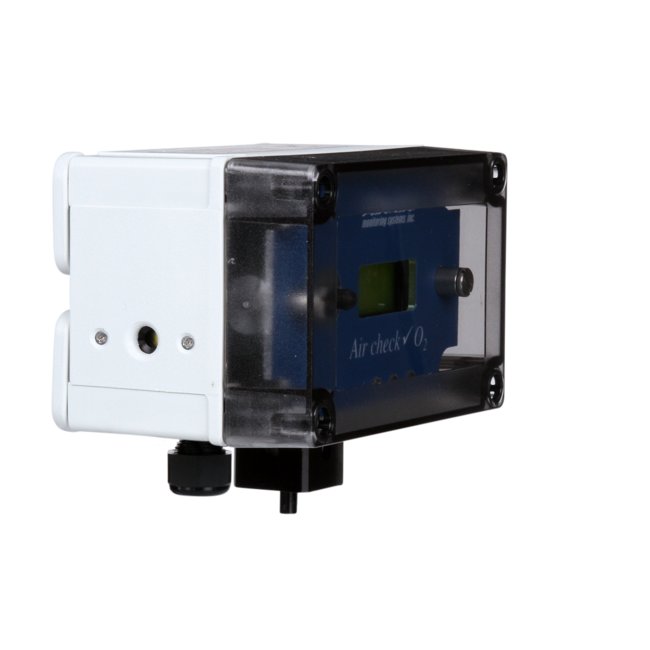

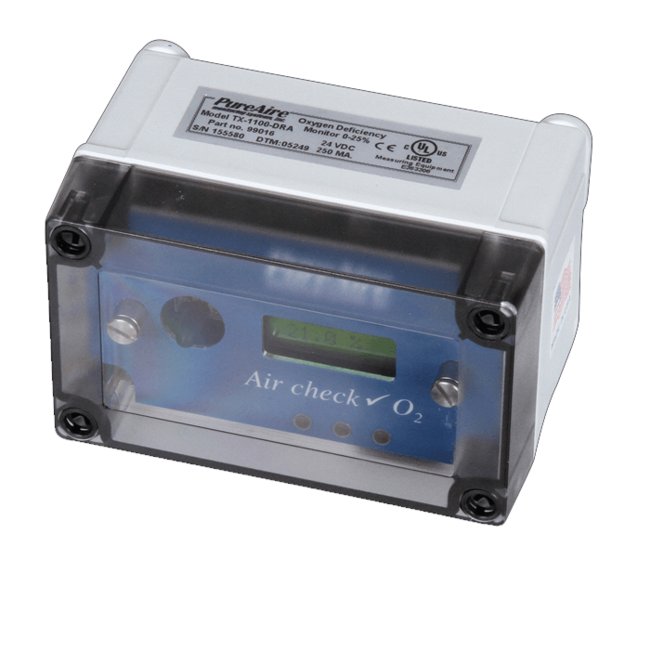

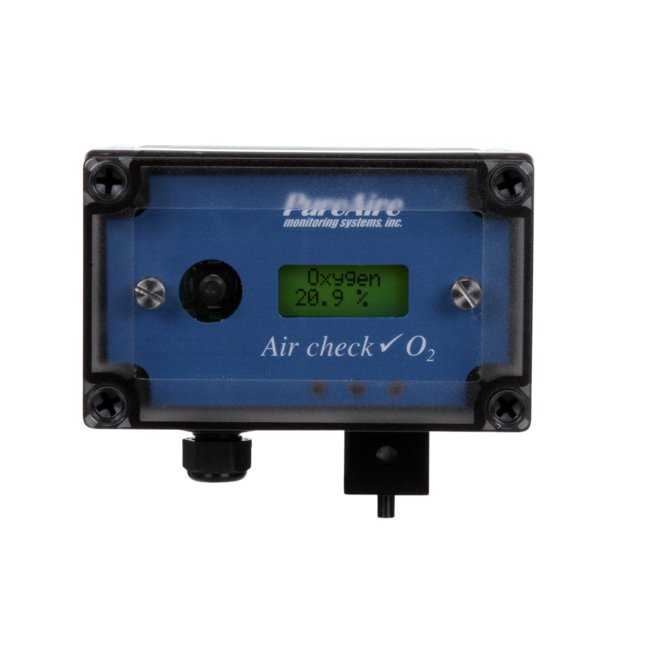

The TX-1100-DRA Oxygen Deficiency Monitor is a vital safety device suitable for facilities using oxygen-sensitive gases like nitrogen, helium, and argon. Equipped with a long-lasting zirconium oxide sensor lasting 10+ years, this monitor ensures accurate detection of oxygen levels ranging from 0 to 25%. Its robust construction and dual-level alarm relay contacts make it ideal for confined spaces, cryogenic facilities, and freezers operating at temperatures as low as -40ºC. With UL, C UL, and CE approvals, this monitor guarantees reliability, requiring no calibration and offering a 3-year warranty.
Product Specifications
Options Options
24 VDC Power Supply (P/N 45101)Horn and Strobe Combo (P/N 42002)Remote Display (P/N 99091)
Specifications Accuracy
± 1 % of Full Scale
Specifications Current
250 mA
Specifications Depth
3.25 in | 82.5 mm
Specifications Digital Display Analog Output Range
4 to 20 mA
Specifications Direct Current Dc Voltage
24 V
Specifications Display
3/4" LCD Digital Display, Back Lit
Specifications Enclosure Material
Polycarbonate
Specifications Gases Detected
Oxygen (O2)
Specifications Height
4.5 in | 114.3 mm
Specifications Operating Temperature
-40 to +55 ºC
Specifications Oxygen Range
0 to 25 %
Specifications Required Calibration
NoneNo Zero or Span Pot Adjustment Required
Specifications Sampling Method
Diffusion
Specifications Sensor Type
Long life zirconium oxide sensor cell
Specifications Signal Outputs
4-20 mA Analog Output Dual Level Alarm Relay Contacts
Specifications Weight
1.6 lb | 0.8 kg
Specifications Width
5.12 in | 130.1 mm
Standard Features 0
10 + Years No Calibration SensorTwo-Alarm Relays for 19.5% and 18.0%No Maintenance RequiredUltra Loud Built-in audible alarm 90 db3 Year WarrantyOperates in Freezers at-40 ºCNo Drift due to Thunderstorms or barometric pressure changesWall mounting brackets and optional plug-in wall power supplyUL, C UL and CE Approvals
