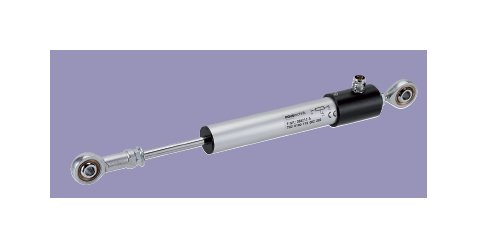

The TX2 Series Linear Position Sensor offers outstanding linearity up to ±0.05% and a resolution better than 0.01 mm. With a rugged design sealed to IP67, this sensor ensures durability in harsh environmental conditions, meeting the high demands of industrial applications. Featuring a compact body and easy assembly with low backlash pivot heads, this sensor provides precise and reliable position feedback for a wide range of institutional procurement needs.
Product Specifications
Specifications Actuating Rod
(1.4305) Rotatable | Stainless Steel
Specifications Approximate Weight With Cable
270 g
Specifications Bearings
Sintered Bronze Bush

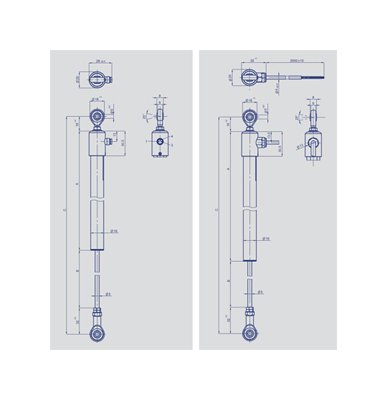

Specifications Body Length Dimension A
374 mm
Specifications Body Length Tolerance
2 mm
Specifications Defined Electrical Range
300 mm
Specifications Dielectric Strength 500 Vac 50 Hz
= 100 µA
Specifications Electrical Connection
3-pin round connector M8x1 | 4-wire PUR-cable, 4x0.14 mm2, shielded, 2 m length
Specifications Electrical Range
305 mm
Specifications Horizontal Operating Force
< 5 N (at RD 20º C)
Specifications Housing Material
Anodized Aluminum
Specifications Important Note
All values specified in this data sheet for linearity, lifetime and temperature coefficient are only valid for a sensor used as a voltage divider with virtually no load applied to the wiper < 1 µA).
Specifications Independent Linearity
0.05 %
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Life
> 50 x 106 typical movements
Specifications Maximum Initial Operating Force
15 N
Specifications Maximum Operating Speed
5 m/s
Specifications Maximum Permissible Applied Voltage
42 V
Specifications Maximum Wiper Current In Case Of System Malfuncti
10 mA
Specifications Mechanical Stroke Dimension B
308 mm
Specifications Mechanical Stroke Tolerance
2 mm
Specifications Minimum Distance Between Pivot Heads Nominal Dime
424 mm
Specifications Nominal Resistance
12 kO
Specifications Operating Humidity Range No Condensation
0 to 95 %
Specifications Optional Accessories
10 m length, EEM-33-68, P/N 005643. | 10 m length, EEM-33-69, P/N 005644. | 2 m length, EEM-33-64. P/N 005617 | 2 m length, EEM-33-65. P/N 005618 | 5 m length, EEM-33-66, P/N 005619 | 5 m length, EEM-33-67, P/N 005620 | MAP - Process-control indicators with display | MUP / MUK Signal conditioners ±24 V power with standard voltage or current output signals. | Other cable on request. | PUR-cable with 3-pin angled female connector M8x1, 3x0.34 mm2, IP67, unshielded | PUR-cable with 3-pin female connector M8x1, 3x0.34 mm2, IP67, unshielded
Specifications Protection Class
Durability of actuating rod seal is dependent upon both application environment and operating cycles. | IP67 - requires mating connector of IP67 or higher | IP67 defined under DIN EN 60529 with submersion depth of 1 m water and duration of 0.5 hour. | Read instructions prior to starting application equipment.
Specifications Recommended Operating Wiper Current
= 1 µA
Specifications Repeatability
0.01 mm
Specifications Resistance Element
Conductive Plastic
Specifications Resistance Tolerance
20 %
Specifications Shock
50 g | 6 ms
Specifications Special Features
Outstanding linearity up to ±0.05 % Resolution better than 0.01 mm Sealed to IP67 - suitable for harsh environmental conditions (moisture, oil, dust) Very long life - up to 50 million movements (application dependent) Compact dimensions = Ø 16 mm Easy to assemble via low backlash pivot heads with a large angle of freedom (up to ±12.5 degrees) Cable or plug connection optional
Specifications Temperature Range For Cable
-20 to 100 ºC
Specifications Temperature Range For Connector
40 to 85 ºC
Specifications Effective Temperature Coefficient Of The
5 ppm/K
Specifications Vertical Operating Force
< 5 N (at RD 20º C) N
Specifications Vibration
5 to 2000 Hz | Amax = 0.75 mm | amax = 20 g
Specifications Wiper Assembly
Precious Metal multi-finger wiper
