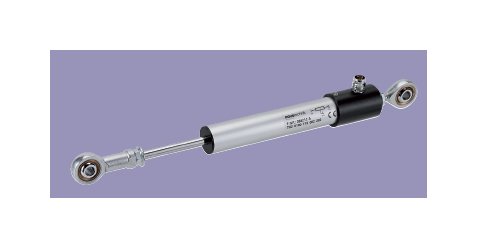

The TX2 Series Linear Position Sensor offers outstanding linearity up to ±0.05%, resolution better than 0.01 mm, and a durable design sealed to IP67 for harsh environmental conditions. With a long operating life of up to 50 million movements, this sensor features a compact anodized aluminum housing, stainless steel actuating rod, and sintered bronze bush bearings. Its compact dimensions and easy assembly with low backlash pivot heads make it ideal for various applications requiring precise positioning. Suitable for government and institutional use, this sensor meets stringent standards while providing reliable and accurate measurements.
Product Specifications
Specifications Actuating Rod
(1.4305) Rotatable | Stainless Steel
Specifications Approximate Weight With Cable
250 g
Specifications Bearings
Sintered Bronze Bush

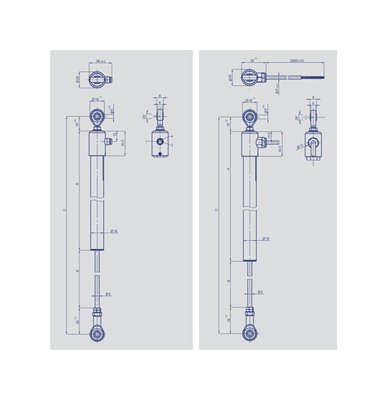

Specifications Body Length Dimension A
324 mm
Specifications Body Length Tolerance
2 mm
Specifications Defined Electrical Range
250 mm
Specifications Dielectric Strength 500 Vac 50 Hz
= 100 µA
Specifications Electrical Connection
3-pin round connector M8x1 | 4-wire PUR-cable, 4x0.14 mm2, shielded, 2 m length
Specifications Electrical Range
255 mm
Specifications Horizontal Operating Force
< 5 N (at RD 20º C)
Specifications Housing Material
Anodized Aluminum
Specifications Important Note
All values specified in this data sheet for linearity, lifetime and temperature coefficient are only valid for a sensor used as a voltage divider with virtually no load applied to the wiper < 1 µA).
Specifications Independent Linearity
0.05 %
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Life
> 50 x 106 typical movements
Specifications Maximum Initial Operating Force
15 N
Specifications Maximum Operating Speed
5 m/s
Specifications Maximum Permissible Applied Voltage
42 V
Specifications Maximum Wiper Current In Case Of System Malfuncti
10 mA
Specifications Mechanical Stroke Dimension B
258 mm
Specifications Mechanical Stroke Tolerance
2 mm
Specifications Minimum Distance Between Pivot Heads Nominal Dime
374 mm
Specifications Nominal Resistance
10 kO
Specifications Operating Humidity Range No Condensation
0 to 95 %
Specifications Optional Accessories
10 m length, EEM-33-68, P/N 005643. | 10 m length, EEM-33-69, P/N 005644. | 2 m length, EEM-33-64. P/N 005617 | 2 m length, EEM-33-65. P/N 005618 | 5 m length, EEM-33-66, P/N 005619 | 5 m length, EEM-33-67, P/N 005620 | MAP - Process-control indicators with display | MUP / MUK Signal conditioners ±24 V power with standard voltage or current output signals. | Other cable on request. | PUR-cable with 3-pin angled female connector M8x1, 3x0.34 mm2, IP67, unshielded | PUR-cable with 3-pin female connector M8x1, 3x0.34 mm2, IP67, unshielded
Specifications Protection Class
Durability of actuating rod seal is dependent upon both application environment and operating cycles. | IP67 - requires mating connector of IP67 or higher | IP67 defined under DIN EN 60529 with submersion depth of 1 m water and duration of 0.5 hour. | Read instructions prior to starting application equipment.
Specifications Recommended Operating Wiper Current
= 1 µA
Specifications Repeatability
0.01 mm
Specifications Resistance Element
Conductive Plastic
Specifications Resistance Tolerance
20 %
Specifications Shock
50 g | 6 ms
Specifications Special Features
Outstanding linearity up to ±0.05 % Resolution better than 0.01 mm Sealed to IP67 - suitable for harsh environmental conditions (moisture, oil, dust) Very long life - up to 50 million movements (application dependent) Compact dimensions = Ø 16 mm Easy to assemble via low backlash pivot heads with a large angle of freedom (up to ±12.5 degrees) Cable or plug connection optional
Specifications Temperature Range For Cable
-20 to 100 ºC
Specifications Temperature Range For Connector
40 to 85 ºC
Specifications Effective Temperature Coefficient Of The
5 ppm/K
Specifications Vertical Operating Force
< 5 N (at RD 20º C) N
Specifications Vibration
5 to 2000 Hz | Amax = 0.75 mm | amax = 20 g
Specifications Wiper Assembly
Precious Metal multi-finger wiper
