TX2 Series Linear Position Sensor - High Precision Rod Type Sensor
TX2 Series Linear Position Sensor - High Precision Rod Type Sensor
SKU:TX2-97ee4a
Achieve precision and durability with the TX2 Linear Position Sensor - ideal for harsh environments, offering high accuracy and long-lasting performance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
TX2 Series Linear Position Sensor - High Precision Rod Type Sensor
$249.99
Quantity: 1
Claim Your Seller Account
TX2 Series Linear Position Sensor - High Precision Rod Type Sensor
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your position sensing capabilities with the TX2 Series Linear Position Sensor. Featuring outstanding linearity up to ±0.05% and a resolution better than 0.01mm, this sensor is sealed to IP67 standards, making it ideal for harsh environments. The robust anodized aluminum housing and stainless steel actuating rod ensure durability, while the compact design and low backlash pivot heads allow for easy assembly. With a long operating life of up to 50 million movements, this sensor excels in accuracy and reliability for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuating Rod
(1.4305) Rotatable | Stainless Steel
Specifications Approximate Weight With Connector
130 g
Specifications Bearings
Sintered Bronze Bush

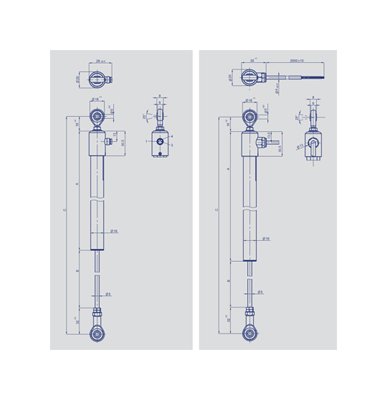

Specifications Body Length Dimension A
161 mm
Specifications Body Length Tolerance
2 mm
Specifications Defined Electrical Range
100 mm
Specifications Dielectric Strength 500 Vac 50 Hz
= 100 µA
Specifications Electrical Connection
3-pin round connector M8x1 | 4-wire PUR-cable, 4x0.14 mm2, shielded, 2 m length
Specifications Electrical Range
102 mm
Specifications Horizontal Operating Force
< 5 N (at RD 20º C)
Specifications Housing Material
Anodized Aluminum
Specifications Important Note
All values specified in this data sheet for linearity, lifetime and temperature coefficient are only valid for a sensor used as a voltage divider with virtually no load applied to the wiper < 1 µA).
Specifications Independent Linearity
0.1 %
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Life
> 50 x 106 typical movements
Specifications Maximum Initial Operating Force
15 N
Specifications Maximum Operating Speed
5 m/s
Specifications Maximum Permissible Applied Voltage
42 V
Specifications Maximum Wiper Current In Case Of System Malfuncti
10 mA
Specifications Mechanical Stroke Dimension B
105 mm
Specifications Mechanical Stroke Tolerance
2 mm
Specifications Minimum Distance Between Pivot Heads Nominal Dime
211 mm
Specifications Nominal Resistance
4 kO
Specifications Operating Humidity Range No Condensation
0 to 95 %
Specifications Optional Accessories
10 m length, EEM-33-68, P/N 005643. | 10 m length, EEM-33-69, P/N 005644. | 2 m length, EEM-33-64. P/N 005617 | 2 m length, EEM-33-65. P/N 005618 | 5 m length, EEM-33-66, P/N 005619 | 5 m length, EEM-33-67, P/N 005620 | MAP - Process-control indicators with display | MUP / MUK Signal conditioners ±24 V power with standard voltage or current output signals. | Other cable on request. | PUR-cable with 3-pin angled female connector M8x1, 3x0.34 mm2, IP67, unshielded | PUR-cable with 3-pin female connector M8x1, 3x0.34 mm2, IP67, unshielded
Specifications Protection Class
Durability of actuating rod seal is dependent upon both application environment and operating cycles. | IP67 - requires mating connector of IP67 or higher | IP67 defined under DIN EN 60529 with submersion depth of 1 m water and duration of 0.5 hour. | Read instructions prior to starting application equipment.
Specifications Recommended Operating Wiper Current
= 1 µA
Specifications Repeatability
0.01 mm
Specifications Resistance Element
Conductive Plastic
Specifications Resistance Tolerance
20 %
Specifications Shock
50 g | 6 ms
Specifications Special Features
Outstanding linearity up to ±0.05 % Resolution better than 0.01 mm Sealed to IP67 - suitable for harsh environmental conditions (moisture, oil, dust) Very long life - up to 50 million movements (application dependent) Compact dimensions = Ø 16 mm Easy to assemble via low backlash pivot heads with a large angle of freedom (up to ±12.5 degrees) Cable or plug connection optional
Specifications Temperature Range For Cable
-20 to 100 ºC
Specifications Temperature Range For Connector
40 to 85 ºC
Specifications Effective Temperature Coefficient Of The
5 ppm/K
Specifications Vertical Operating Force
< 5 N (at RD 20º C) N
Specifications Vibration
5 to 2000 Hz | Amax = 0.75 mm | amax = 20 g
Specifications Wiper Assembly
Precious Metal multi-finger wiper
