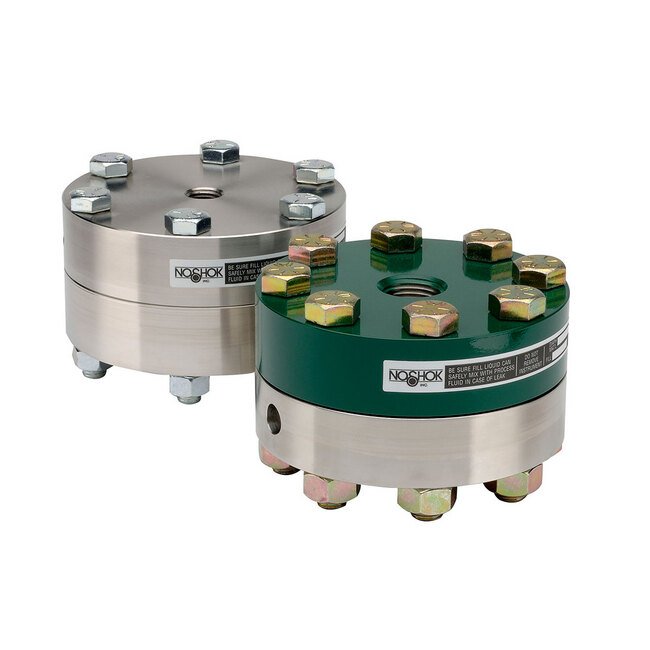

Type 10 Carbon Steel Diaphragm Seal
Type 10 Carbon Steel Diaphragm Seal
SKU:NOS-49664b
High-quality Type 10 Carbon Steel Diaphragm Seal with 316 Stainless Steel diaphragm and PTFE O-Ring, ideal for extreme conditions.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Type 10 Carbon Steel Diaphragm Seal
$129.99
Quantity: 1
Claim Your Seller Account
Type 10 Carbon Steel Diaphragm Seal
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

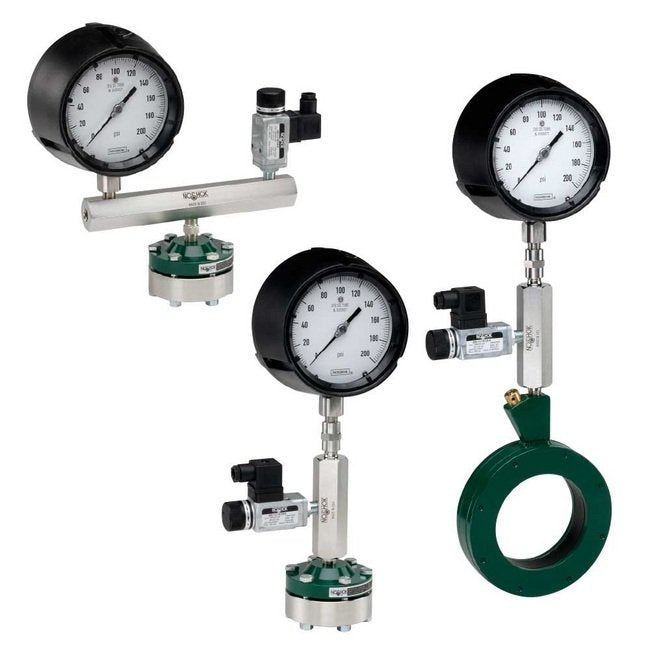

The Type 10 Carbon Steel Diaphragm Seal is a robust solution designed to protect pressure measuring instruments from extreme temperatures, corrosive, or viscous process media. Featuring a 316 Stainless Steel diaphragm and Polytetrafluoroethylene (PTFE) O-Ring, this seal ensures a leak-free connection. With process connection sizes ranging from 1/4" NPT to 1-1/2" NPT, it offers versatility for various applications, such as water treatment, chemical processing, and industrial automation. The replaceable diaphragm design with a threaded seal provides ease of maintenance and reliable pressure isolation, making it an ideal choice for demanding environments.

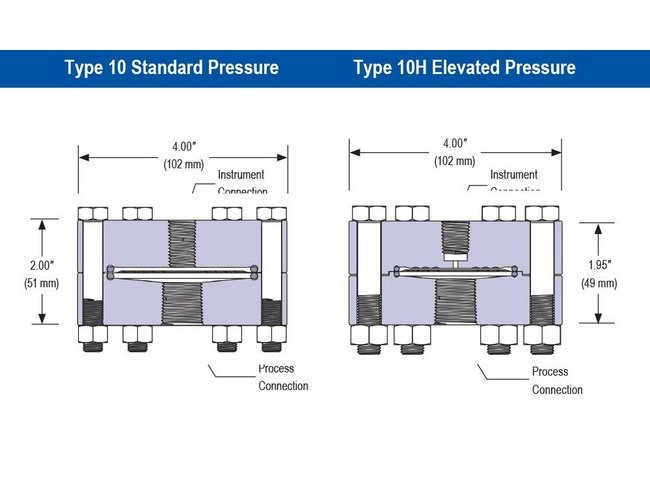

Product Specifications
Additional Information Additional Information

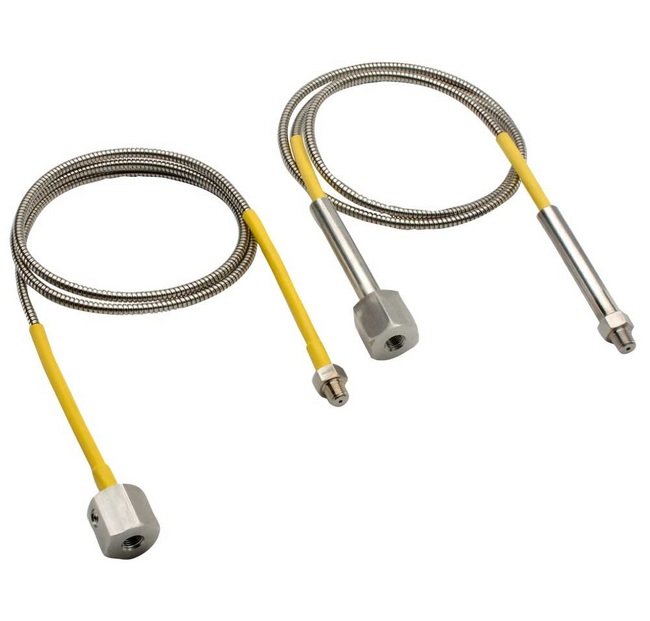

Flushing port connection is an available option that allows the wetted areas of the seal to be cleaned, or the process vented without removing the unit from the lineConsider instrument size, pressure range, media composition, ambient and operating temperature, and maximum working pressure when selectingCapillaries and cooling elements are available for elevated process temperatures, see options & accessories belowFill fluid must be compatible with process media; i.e. Glycerin may become volatile in conjunction with a strong oxidizing agent such as chlorine, forms of oxygen or peroxide and nitric acids
Application Application
Water and wastewaterOil and gasPetrochemicalChemical processingIndustrial automationMarineAgricultureSteel fabricationMud pumpingPulp and paperPneumatic
Bottom Housing Material Maximum Pressure And Temperature Limits
Metallic lower housings determined by pressure range of seal type, restricted to temperature range of fill fluid.
Diaphragm Pressure And Temperature Limits Diaphragm Pressure Lim
2,000 psi
Diaphragm Pressure And Temperature Limits Diaphragm Temperature
-10 to 400 ºF
Diaphragm Pressure And Temperature Limits Note For Diaphragm Pre
Metallic diaphragms determined by pressure range of seal type, restricted to temperature range of fill fluid.
Instruments Pressure Max For Gauges 2 12 To 6 In Size
0 to 2,000 psig
Instruments Pressure Max For Switches
0 to 2,000 psig
Instruments Pressure Max For Transducers
0 to 2,000 psig
Instruments Pressure Min For Gauges 2 12 To 6 In Size
0 to 30 psig
Instruments Pressure Min For Switches
0 to 30 psig
Instruments Pressure Min For Transducers
0 to 30 psig
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. Gauge failures determined to be caused by over-range, incompatibility with environment or product media and abuse will not be considered under this warranty. NOSHOK, Inc. will, at its discretion, repair or replace the working parts of the damaged gauge without cost to the customer.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
NBR O-Rings standard with 316SS diaphragm
Options And Accessories Cooling Elements
1/4" NPT x 1/4" NPT Cooling Element (1/4" NPT x 1/4" NPT-CE)1/2" NPT x 1/2" NPT Cooling Element (1/2" NPT x 1/2" NPT-CE)Works in combination with diaphragm seal to isolate instrument from high media temperaturesRecommended for process temperatures above 212 ºFRequires direct mounted systemEffective temperature reductions of 200 ºF depending upon ambient conditionsHigh >212 ºF process temperature, low < -40 ºF process temperatureAll Stainless Steel construction
O Ring Temperature Limits O Ring Temperature Limits For Fluoroca
-10 to 400 ºF
O Ring Temperature Limits O Ring Temperature Limits For Nitrile
-40 to 250 ºF
O Ring Temperature Limits O Ring Temperature Limits For Polytetr
-400 to 400 ºF
Specifications Bolting Material
Zinc-Plated Steel
Specifications Diaphragm Material
316 Stainless Steel
Specifications Diaphragm Size
3.0 in
Specifications Flushing Connection Size
1/4 in
Specifications Instrument Connection Size
1/2 in
Specifications Instrument Gauge Size
2-1/2 to 6 in
Specifications Lower Housing Connection Size
1/4 in | 1/2 in | 3/4 in | 1 in | 1-1/4 in | 1-1/2 in
Specifications Lower Housing Material
316 Stainless Steel
Specifications Optional Bolting Material
Stainless Steel
Specifications O Rings Material
Polytetrafluoroethylene (PTFE)
Specifications Process Connection Size
1/2 in
Specifications Upper Housing Material
Carbon Steel
