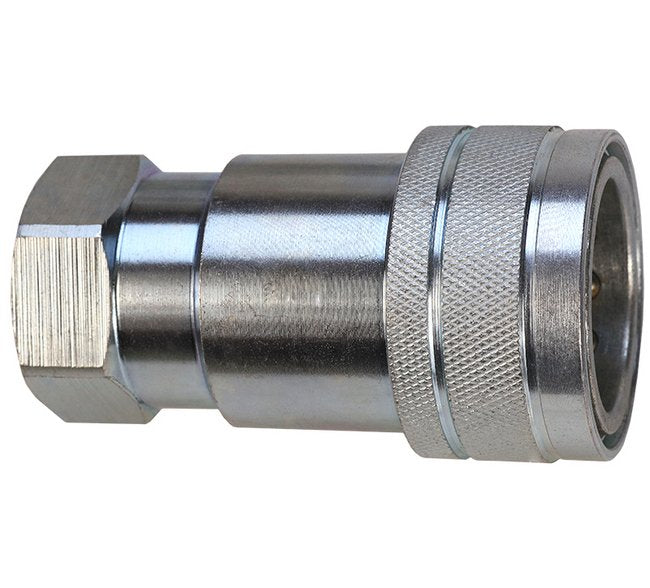

Type A Quick Connect Hydraulic Socket - Carbon Steel, 1.85in Length
Type A Quick Connect Hydraulic Socket - Carbon Steel, 1.85in Length
SKU:COU-7d6f56
Precision-engineered Type A Quick Connect Hydraulic Socket in Carbon Steel for reliable performance in diverse hydraulic applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Type A Quick Connect Hydraulic Socket - Carbon Steel, 1.85in Length
$39.99
Quantity: 1
Claim Your Seller Account
Type A Quick Connect Hydraulic Socket - Carbon Steel, 1.85in Length
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Type A Quick Connect Hydraulic Socket is expertly crafted from Carbon Steel to meet the rigorous ISO 7241-A standard. With a durable construction and precise engineering, this coupler guarantees reliable performance in various hydraulic applications. Its compatibility with top industry brands like Hansen, Parker, and Faster ensures seamless integration, making it an ideal choice for construction equipment, manufacturing machinery, and in-plant systems.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (ISO 7241-A)
Specifications Balls
GCr 15
Specifications Body Size
1/4 in
Specifications Coupler Material
Steel
Specifications End Size
1/4 in. Female NPT
Specifications Hex Size
19 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Locking O Ring Material
Spring Steel
Specifications Material
Carbon Steel
Specifications Overall Diameter
25 mm | 0.98 in
Specifications Overall Length
47 mm | 1.85 in
Specifications Seal Material
Buna-N (Nitrile)
Specifications Spring Material
Spring Steel
Specifications Style
Hydraulic Sockets
Specifications Surface Treatment
Zinc Plating and Cr 3+ Passivation
Specifications Type
A
Specifications Valve Material
Steel
Specifications Working Pressure
4600 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
