Type B NMUA Connectors - Liquid-Tight Flexible Non-Metallic Conduit (LFNC) Fittings
Type B NMUA Connectors - Liquid-Tight Flexible Non-Metallic Conduit (LFNC) Fittings
SKU:FIT-039281
High-quality Type B NMUA Connectors for liquid-tight non-metallic conduits, UL Listed & CSA Certified.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Type B NMUA Connectors - Liquid-Tight Flexible Non-Metallic Conduit (LFNC) Fittings
$24.99
Quantity: 1
Claim Your Seller Account
Type B NMUA Connectors - Liquid-Tight Flexible Non-Metallic Conduit (LFNC) Fittings
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

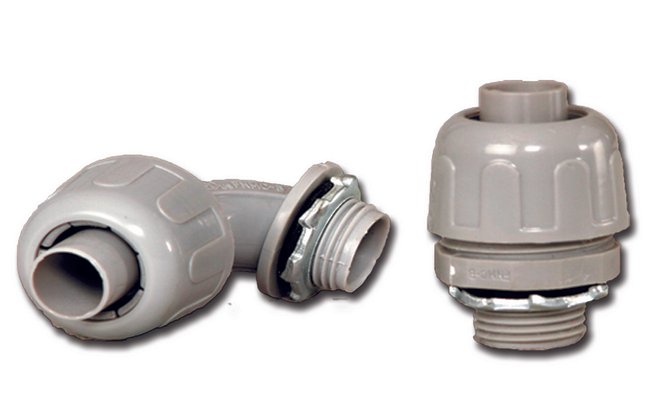

The Type B NMUA Connectors are essential fittings for liquid-tight flexible non-metallic conduit systems, constructed with durable nylon 66 material. These connectors are UL Listed, CSA Certified, and RoHS WEEE Compliant, ensuring high-quality performance. Featuring a straight connector type and suitable for 1-1/4 inch electrical trade sizes, these connectors are designed for easy installation in both exposed and concealed locations. With a temperature range of -40ºF to +212ºF, they meet NEC Article 356 and UL Standard 514B requirements, making them ideal for diverse applications.
Product Specifications
Application 0
Type B LFNC Straight and 90º ConnectorsMeets Requirements of NEC 356 and UL 514BTemperature Range: -40ºF to +212ºF (-40ºC to +100ºC).
Installation 0
Connectors used with standard non-metallic Type B conduit for easy installation.Approved for both exposed and concealed locations. Rated for temperature ranges of -40ºF to +212ºF (-40ºC to +100ºC).Easy to install, by pushing the non-metallic conduit onto the smooth ferrule and tightening the sealing nut.Manufactured in a full range of trade sizes from 3/8" through 2".Complies with NEC Article 356 and UL Standard 514B File No. E-322120.Straight connectors approved for direct burial and in concrete trade sizes 3/8" through 2".
Nec Articles 0
Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment GroundingArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B)Article 501.10 (B) (2) Class I Div. 2Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Weight Per Package
0.45 Kilogram | 1 lbs
Specifications Color
GRAY
Specifications Connector Type
Straight
Specifications Core Material
Nylon

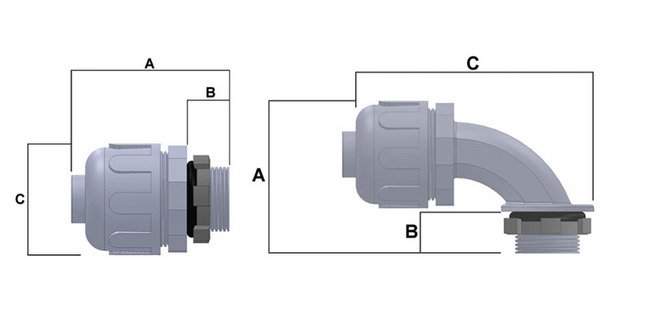

Specifications Dimension A
2.293 in
Specifications Dimension B
0.645 in
Specifications Dimension C
2.400 in
Specifications Electrical Trade Size
1-1/4 in | 35 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Jacket Benefits
Liquid Tight
Specifications Ko Size
1 1/4 in
Specifications Packaging
Standard Package
Specifications Thread Type
NPT
Specifications Type
NMUA
Specifications Units Per Package
5
