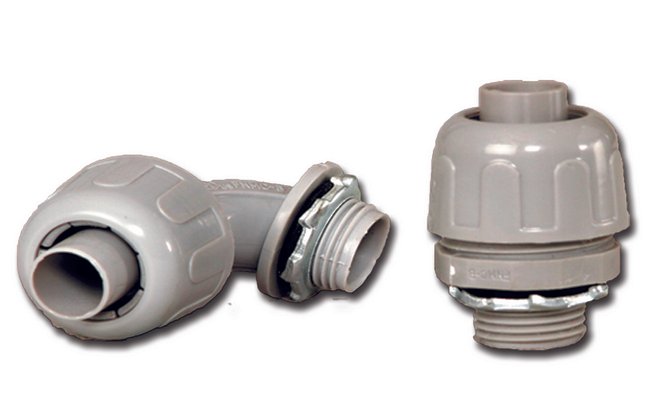

Type B NMUA Liquid-Tight Non-Metallic Conduit Connectors
Type B NMUA Liquid-Tight Non-Metallic Conduit Connectors
SKU:FIT-23cd9e
Durable and flame-retardant Type B NMUA Connectors for secure electrical installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Type B NMUA Liquid-Tight Non-Metallic Conduit Connectors
$24.99
Quantity: 1
Claim Your Seller Account
Type B NMUA Liquid-Tight Non-Metallic Conduit Connectors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Type B NMUA Liquid-Tight Non-Metallic Conduit Connectors provide a durable, flame-retardant solution for electrical installations. Constructed with nylon 66 and featuring an O-ring and steel lock nut, these connectors are reusable, resistant to various substances, and UL Listed and CSA Certified. Suitable for a wide temperature range, they are ideal for both exposed and concealed locations, meeting NEC Article 356 and UL Standard 514B requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Type B LFNC Straight and 90º ConnectorsMeets Requirements of NEC 356 and UL 514BTemperature Range: -40ºF to +212ºF (-40ºC to +100ºC).
Installation 0
Connectors used with standard non-metallic Type B conduit for easy installation.Approved for both exposed and concealed locations. Rated for temperature ranges of -40ºF to +212ºF (-40ºC to +100ºC).Easy to install, by pushing the non-metallic conduit onto the smooth ferrule and tightening the sealing nut.Manufactured in a full range of trade sizes from 3/8" through 2".Complies with NEC Article 356 and UL Standard 514B File No. E-322120.Straight connectors approved for direct burial and in concrete trade sizes 3/8" through 2".
Nec Articles 0
Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment GroundingArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B)Article 501.10 (B) (2) Class I Div. 2Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Weight Per Package
0.64 Kilogram | 1.4 lbs
Specifications Color
GRAY
Specifications Connector Type
90º
Specifications Core Material
Nylon

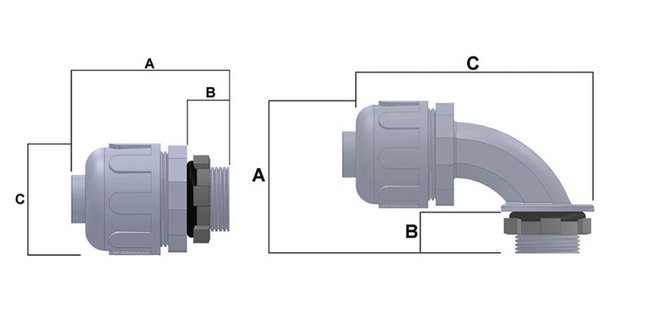

Specifications Dimension A
3.420 in
Specifications Dimension B
0.645 in
Specifications Dimension C
5.200 in
Specifications Electrical Trade Size
35 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Jacket Benefits
Liquid Tight
Specifications Packaging
Standard Package
Specifications Thread Type
NPT
Specifications Type
NMUA
Specifications Units Per Package
2
