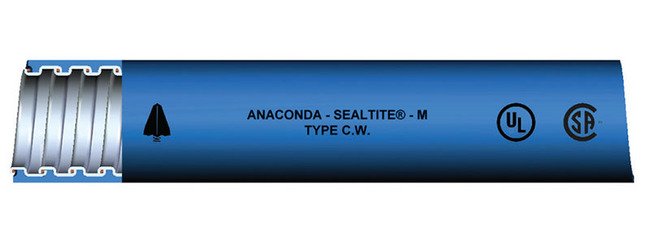

Type CW HD - Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC)

Name: Type CW HD - Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC)
Brand: Anamet Electrical, Inc.
SKU: LIQ-bc3e61
Price: 399.99 USD
Availability: OutOfStock

SKU:LIQ-bc3e61

Type CW HD - Blue Liquid-Tight Flexible Metal Conduit - UL Listed, CSA Certified, IP Rated. Ideal for computer wiring systems.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

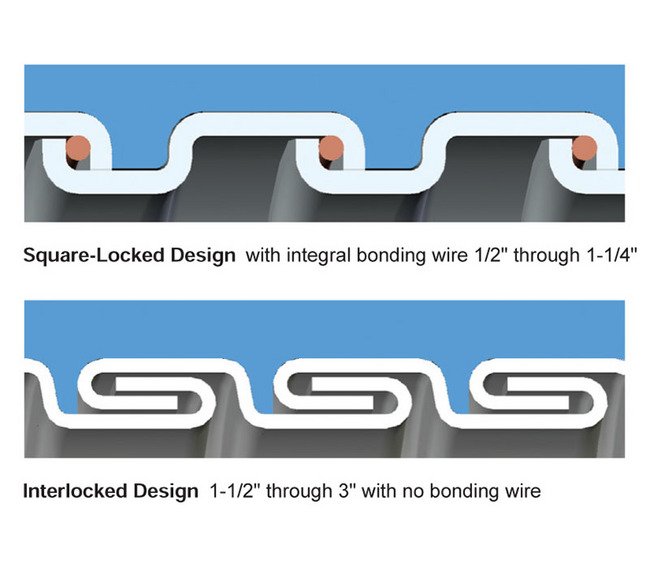

The Type CW HD Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) is a reliable solution designed to provide a flexible liquid-tight raceway for wiring systems. This conduit features a durable construction of continuously interlocked hot-dipped zinc galvanized steel core with a flame-retardant PVC jacket, ensuring both flexibility and safety. With industry certifications including UL Listed and CSA Certified, along with an Ingress Protection (IP) Rating of 66/67, this conduit meets stringent standards for electrical installations. Approved for direct burial and suitable for hazardous locations, it complies with NEC standards and is ideal for a range of applications, especially in computer wiring setups.

Product Specifications

Application 0

Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

6.0 in | 152.4 mm

Specifications Approx Weight Per 100 Ft

71 lbs | 32.2 kg

Specifications Color

BLUE

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

55-09-36-04 | 6404-41-00 | CB | CBLA-13 | CBLT-1 | ULBLUE

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.041 to 1.066 in | 26.441 to 27.076 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

600 ft | 182.88 m

Specifications Note

Other colors available upon request.3/8" & 4" trade sizes available on special order.

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Standard Reels

Specifications Type

Type CW HD - Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC)
