Type DE-710 Flexible Steel Conduit - UL Recognized for OEMs
Type DE-710 Flexible Steel Conduit - UL Recognized for OEMs
SKU:FLE-81efd9
Type DE-710 - Heavy-Duty, Extra Flexible Conduit for OEMs; UL Recognized, Crush and Corrosion Resistant. Custom Lengths. Ideal for +450ºF applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Type DE-710 Flexible Steel Conduit - UL Recognized for OEMs
$89.99
Quantity: 1
Claim Your Seller Account
Type DE-710 Flexible Steel Conduit - UL Recognized for OEMs
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

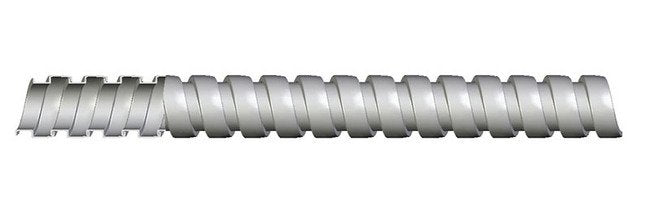

The Type DE-710 Heavy-Duty Flexible Steel Conduit is designed for OEM and Industrial applications, offering exceptional crush and corrosion resistance. This UL Recognized conduit, constructed with continuously interlocked hot dipped zinc galvanized steel core, provides unmatched flexibility and durability. Ideal for office furnishings, workstations, and partitions, it ensures a tight bend radius with a maximum temperature of +450ºF. Customize the length to fit your needs and benefit from its extra strength and flexibility.
Product Specifications
Application 0
Extra FlexibleExtra Strength+450°F Maximum Temperature
Installation 0

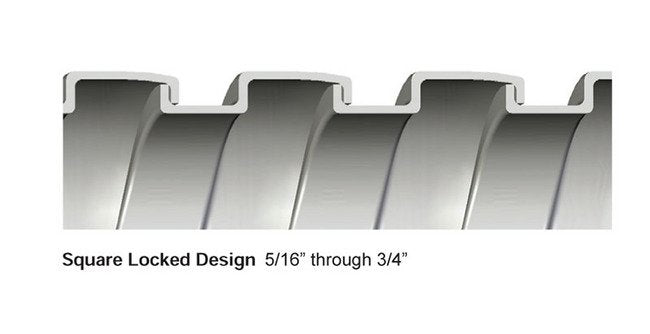

Used in office furnishings, work stations and partitions.Exceptional flexibility for tight "U" bend radius.Complies with UL Recognized File No. E-39679; DXUZ2. Size range, actual I.D. 5/16" through 3/4".Available in custom-cut lengths.+450ºF maximum temperature.
Nec Articles 0
Article 604 Manufactured Wiring Systems
Specifications Approx Inside Bend Radius
1.5 in | 38.1 mm
Specifications Approx Weight Per 100 Ft
13 lbs | 5.90 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
55-28-35-01 | 93402 | AFS-7/16 | FlexCon Extra | SLINKY FLEX | USL-716
Specifications Industry Certifications
RU Certification
Specifications Inside Diameter
0.437 to 0.462 in | 11.100 to 11.735 mm
Specifications Jacket Material
None
Specifications Length
Custom
Specifications Nominal Size
7/16 in | 11 mm
Specifications Note
Longer length reels available on request - consult factory.
Specifications Outside Diameter
0.581 to 0.606 in | 14.757 to 15.392 mm
Specifications Packaging
Contact Anamet
Specifications Type
DE - 710
