Type E Piloted Flange Heavy Duty Mounted Units - 80mm Shaft
Type E Piloted Flange Heavy Duty Mounted Units - 80mm Shaft
SKU:MOU-c009a4
Get high load-bearing capacity with Type E Heavy Duty Mounted Units - 80mm Shaft. Easy to install, secure shaft locking, and dust protection.
Regular price
$349.00
Regular price
Sale price
$349.00
Unit price
per
Initiate Order
Type E Piloted Flange Heavy Duty Mounted Units - 80mm Shaft
$349.00
Quantity: 1
Claim Your Seller Account
Type E Piloted Flange Heavy Duty Mounted Units - 80mm Shaft
$349.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

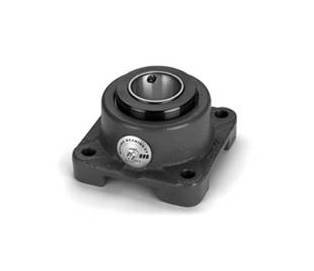

The Type E Piloted Flange Heavy Duty Mounted Units are engineered to handle high radial and thrust loads efficiently. Featuring Timken tapered roller bearings and labyrinth seals, these units ensure secure shaft locking, dust, and dirt protection. With specific dimensions and multiple drive collars & mounting holes, these units provide ease of installation and reliable performance. Designed for Non-Expansion type applications, they meet stringent industry standards for durability and reliability.
Product Specifications

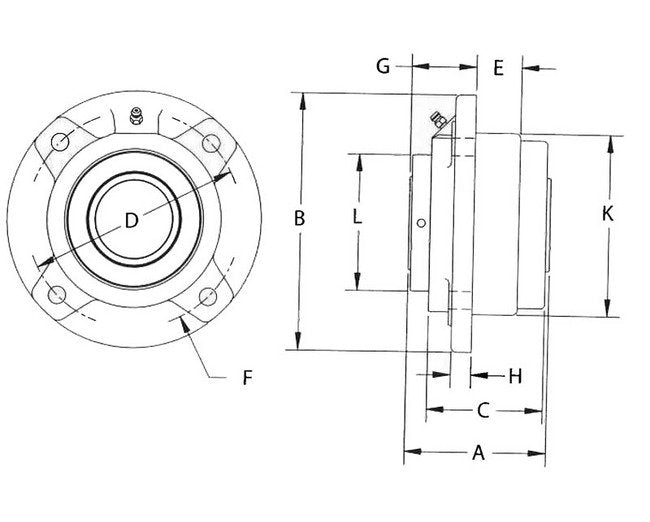

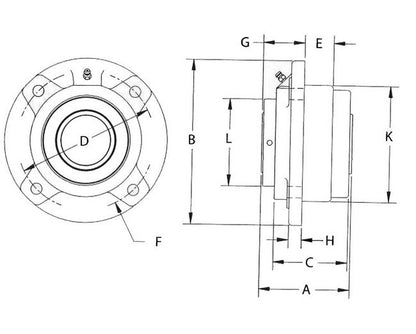

Specifications A Dimension
5 in
Specifications Browning Pn
FBE920-19331080
Specifications B Dimension
10-1/4 in
Specifications C Dimension
4-3/16 in
Specifications Dodge Pn
F4BE-19331080
Specifications D Dimension
8-5/8 in
Specifications E Dimension
1-1/4 in
Specifications F Dimension
3/4 in
Specifications G Dimension
2-7/16 in
Specifications Hub City Pn
EFB4-19331080
Specifications H Dimension
7/8 in
Specifications K Dimension
7-3/8 in
Specifications L Dimension
5-7/16 in
Specifications Moline Pn
19331080
Specifications Number Of Drive Collars
2
Specifications Number Of Mounting Holes
4
Specifications Rex Pn
ZEF2000-F-19331080
Specifications Royersford Pn
20-05-0103-19331080
Specifications Sealmaster Pn
EFB-19331080
Specifications Shaft Size
80 mm
Specifications Weight
44 lb
