Type EF Metal Conduit, General Construction Grade, Liquid-Tight
Type EF Metal Conduit, General Construction Grade, Liquid-Tight
SKU:LIQ-bdc31e
Flexible, durable, and liquid-tight Type EF Metal Conduit for reliable wiring installations. IP 67 rated with RoHS WEEE certification.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Type EF Metal Conduit, General Construction Grade, Liquid-Tight
$129.99
Quantity: 1
Claim Your Seller Account
Type EF Metal Conduit, General Construction Grade, Liquid-Tight
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

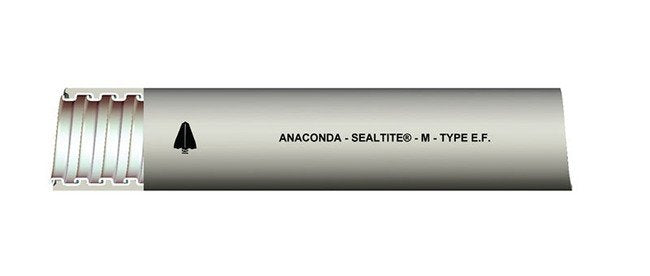

The Type EF General Construction Grade Liquid-Tight Flexible Metal Conduit (LFMC) is a reliable solution for wiring installations that require flexibility and liquid-tight protection. This conduit features a thermoplastic PVC jacket with a continuously interlocked hot dipped zinc galvanized steel core, ensuring durability and resistance to environmental factors. With an IP 67 rating when used with approved end connectors, this conduit provides a secure raceway for electrical conductors. Suitable for General Construction Grade applications, it offers a temperature range of -4ºF to +140ºF (-20ºC to +60ºC), meeting industry standards such as RoHS WEEE. Install with standard liquid-tight connectors for easy setup and rest assured of superior wiring protection where agency approvals are not mandated.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
5.5 in | 139.7 mm
Specifications Approx Weight Per 100 Ft
95 lbs | 43.09 kg
Specifications Color
GRAY
Specifications Core Material
Aluminum
Specifications Cross Reference
80152 | EF-15 | EFLT-1-1/2 | EXLT-1-1/2
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.575 to 1.600 in | 40.005 to 40.640 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Note
Standard SEALTITE® Type EFST is recommended in sizes above 2"
Specifications Outside Diameter
1.865 to 1.900 in | 47.371 to 48.260 mm
Specifications Packaging
Standard Carton
Specifications Type
EF
