Type HC Liquid-Tight Flexible Metal Conduit (LFMC) - 1-1/4 in, Gray, 250 ft

Name: Type HC Liquid-Tight Flexible Metal Conduit (LFMC) - 1-1/4 in, Gray, 250 ft
Brand: Anamet Electrical, Inc.
SKU: LIQ-2768b0
Price: 339.99 USD
Availability: OutOfStock

SKU:LIQ-2768b0

Type HC Liquid-Tight Conduit: Flexible, high-quality conduit for superior wiring protection in various environments.

$339.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

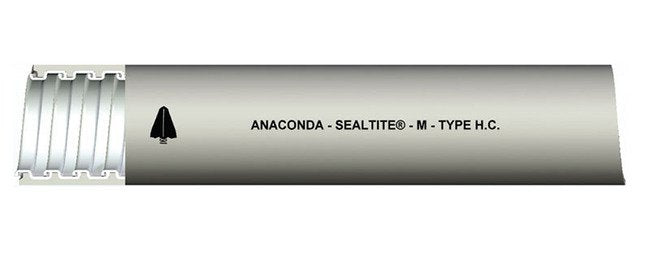

The Type HC Liquid-Tight Flexible Metal Conduit is an ideal solution for high and low-temperature environments, offering a flexible liquid-tight raceway for wiring. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, it ensures superior wiring protection. This conduit, with an IP 67 rating, is perfect for applications not requiring agency approvals. It operates smoothly in temperatures ranging from -51ºF to +221ºF (-46ºC to +105ºC), delivering reliability and durability in diverse settings.

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

4.5 in | 114.3 mm

Specifications Approx Weight Per 100 Ft

66 lbs | 29.94 kg

Specifications Color

GRAY

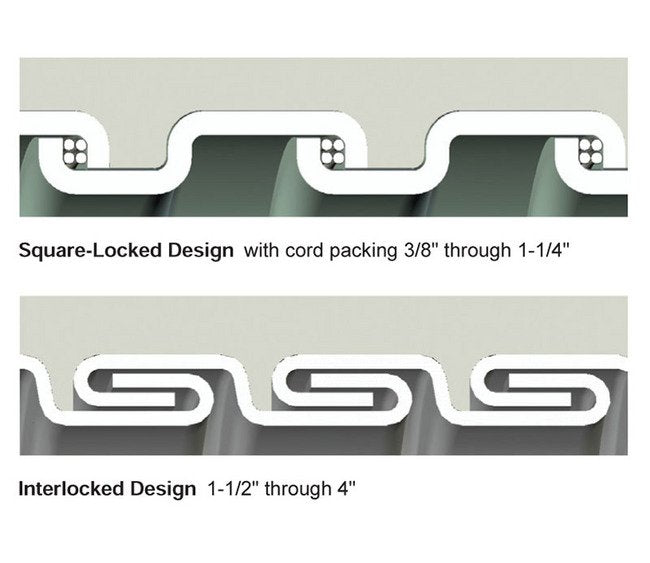

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

34104 | AT-14 | HLT-1-1/4

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.370 to 1.395 in | 34.798 to 35.433 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

250 ft | 76.2 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

1.635 to 1.660 in | 41.529 to 42.164 mm

Specifications Packaging

Small Reels

Specifications Type

Type HC Liquid-Tight Flexible Metal Conduit (LFMC) - 1-1/4 in, Gray, 250 ft
