Type HFSS 316 Stainless Steel Flexible Conduit
Type HFSS 316 Stainless Steel Flexible Conduit
SKU:LIQ-8db453
Durable Type HFSS 316 Stainless Steel Flexible Conduit for high/low-temperature applications with superior corrosion resistance. Ideal for safety-critical environments.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Type HFSS 316 Stainless Steel Flexible Conduit
$299.99
Quantity: 1
Claim Your Seller Account
Type HFSS 316 Stainless Steel Flexible Conduit
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

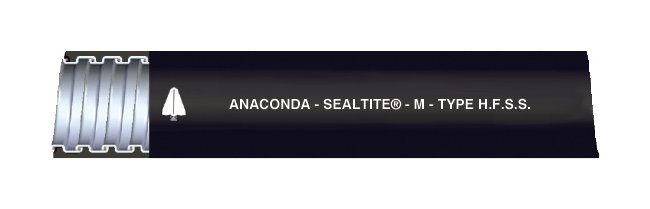

The Type HFSS 316 Stainless Steel Flexible Conduit is a top-of-the-line solution for high and low-temperature applications requiring superior corrosion resistance. Constructed with a continuously interlocked 316 stainless steel core and a flame-retardant, low smoke, and zero halogen TPU jacket, this conduit offers exceptional crush and corrosion resistance. Its durable design makes it suitable for safety-critical environments such as rail and infrastructure applications. With a temperature range of -40°F to +176°F, UV resistance, and UL certification, this conduit ensures reliability and safety in various settings.
Product Specifications
Specifications Approx Inside Bend Radius
3.0 in
Specifications Approx Weight Per 100 Ft
39 lbs
Specifications Color
BLACK
Specifications Core Material
Stainless Steel
Specifications Electrical Trade Size
3/4 in | 21 mm
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
.820 - .840 in
Specifications Jacket Benefits
Liquid Tight | Low Smoke/Low Flame | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
100 ft | 30.48 m
Specifications Outside Diameter
1.030 - 1.050 in
Specifications Packaging
Carton
Specifications Type
TYPE HFSS
