Type MTC Liquid-Tight Flexible Metal Conduit
Type MTC Liquid-Tight Flexible Metal Conduit
SKU:LIQ-11f26f
Flexible and durable Type MTC conduit for superior wiring protection in machine centers and robotics. IP 67 rated with RoHS and WEEE certifications. Temperature range: -4°F to +140°F.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Type MTC Liquid-Tight Flexible Metal Conduit
$349.99
Quantity: 1
Claim Your Seller Account
Type MTC Liquid-Tight Flexible Metal Conduit
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

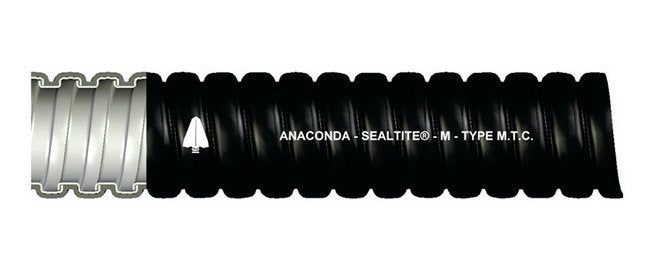

The Type MTC Liquid-Tight Flexible Metal Conduit by Anaconda SEALTITE® is a reliable solution providing a flexible, liquid-tight raceway for wiring. Constructed with continuously interlocked hot dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit offers superior wiring protection in machine centers and robotics applications. With an IP 67 rating when paired with approved connectors, it ensures a secure and efficient electrical setup. This extra flexible conduit, meeting RoHS and WEEE certifications, is ideal for environments where agency approvals are not mandated, offering a temperature range of -4°F to +140°F (-20°C to +60°C).
Product Specifications
Application 0
Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
3.0 in | 76.2 mm
Specifications Approx Weight Per 100 Ft
30 lbs | 13.61 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
89232 | MTLT | MTLT-1 | VJC-13
Specifications Electrical Trade Size
1 in | 27 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.030 to 1.055 in | 26.162 to 26.797 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Outside Diameter
1.228 to 1.258 in | 31.191 to 31.953 mm
Specifications Packaging
Standard Carton
Specifications Type
MTC
