Type OR Liquid-Tight Flexible Metal Conduit

Name: Type OR Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-1cb598
Price: 499.99 USD
Availability: OutOfStock

SKU:LIQ-1cb598

Premium Type OR Liquid-Tight Flexible Metal Conduit for superior wiring protection. Ideal for cutting oil-exposed environments. IP 67 rated.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

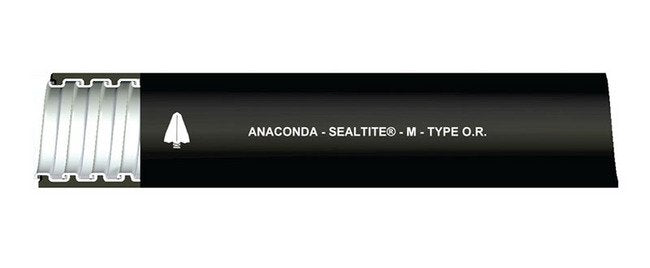

The Type OR Liquid-Tight Flexible Metal Conduit (LFMC) is a top-tier solution for applications requiring a flexible, liquid-tight raceway for wiring. Featuring a thermoplastic PVC jacket with a continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit meets IP 67 ratings when used with approved end connectors. It excels in environments exposed to cutting oils, with an impressive temperature range of -9ºF to +221ºF (-23ºC to +105ºC). Designed for ease of installation when paired with standard liquid-tight connectors, this conduit delivers superior wiring protection where agency approvals are not required.

Product Specifications

Application 0

Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

39 lbs | 17.69 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

LOR-12

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

500 ft | 152.4 m

Specifications Note

Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.

Specifications Optional Colors

Gray

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Small Reels

Specifications Type

Type OR Liquid-Tight Flexible Metal Conduit
