Type QX Precision Metal Orifice Assembly - Bleed Plug, 10-32 UNF
Type QX Precision Metal Orifice Assembly - Bleed Plug, 10-32 UNF
SKU:PRE-99bf65
Achieve precision flow control with the Type QX Metal Orifice Assembly. Viton-sealed, brass construction, and compliant with industry standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Type QX Precision Metal Orifice Assembly - Bleed Plug, 10-32 UNF
$39.99
Quantity: 1
Claim Your Seller Account
Type QX Precision Metal Orifice Assembly - Bleed Plug, 10-32 UNF
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

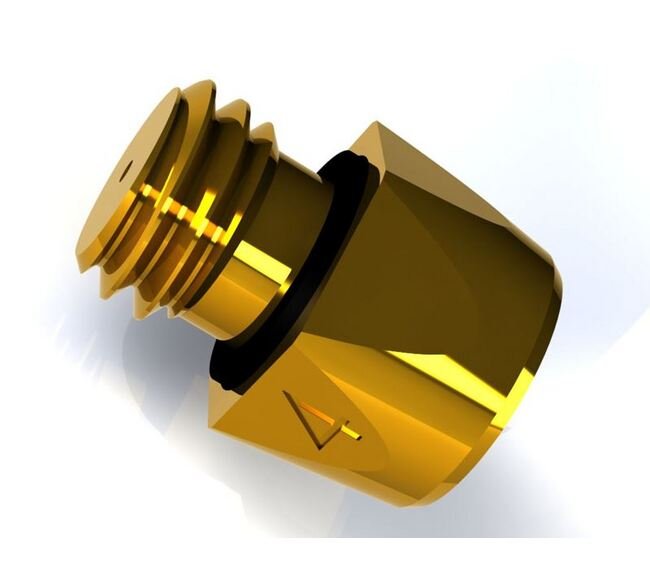

The Type QX Precision Metal Orifice Assembly - Bleed Plug, featuring a Viton seal and brass construction, sets the standard for precision flow control. With a Nominal Orifice Size of 0.017 inches, CV of 0.0067, and 100 psig Maximum Operating Pressure, this assembly ensures accurate throttling for gases or liquids. It complies with stringent industry standards, making it ideal for institutional applications.
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.017 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.335 in
Dimensions Width Across Flats Hex
1/4 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.64 | 5 psig: 3.73 | 10 psig: 4.79 | 15 psig: 6.04 | 20 psig: 7.20 | 25 psig: 8.31 | 30 psig: 9.39 | 40 psig: 11.6 | 50 psig: 13.8 | 60 psig: 16.0 | 70 psig: 18.2 | 80 psig: 20.5 | 90 psig: 22.7 | 100 psig: 25.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.77 | 5 psig (34.5 kPag): 1.76 | 10 psig (69.0 kPag): 2.26 | 15 psig (103.4 kPag): 2.85 | 20 psig (137.9 kPag): 3.40 | 25 psig (172.4 kPag): 3.92 | 30 psig (206.9 kPag): 4.43 | 40 psig (275.8 kPag): 5.47 | 50 psig (344.8 kPag): 6.51 | 60 psig (413.7 kPag): 7.56 | 70 psig (482.7 kPag): 8.61 | 80 psig (551.6 kPag): 9.67 | 90 psig (620.6 kPag): 10.7 | 100 psig (689.5 kPag): 11.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 3.28 | 20 In. Hg.: 3.28 | 30 In. Hg.: 3.28
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.55 | 20 In. Hg. (508 Mm. Hg.): 1.55 | 30 In. Hg. (762 Mm. Hg.): 1.55
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.41 | 10 In. Hg.: 2.99
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.14 | 10 In. Hg. (254 Mm. Hg.): 1.41
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0067 | 2 psig: 0.0095 | 3 psig: 0.0116 | 4 psig: 0.0134 | 5 psig: 0.0150 | 6 psig: 0.0164 | 7 psig: 0.0177 | 8 psig: 0.0190 | 9 psig: 0.0201 | 10 psig: 0.0212 | 15 psig: 0.0259 | 20 psig: 0.0300 | 30 psig: 0.0367 | 40 psig: 0.0424 | 50 psig: 0.0474 | 60 psig: 0.0519 | 70 psig: 0.0561 | 80 psig: 0.0599 | 90 psig: 0.0636 | 100 psig: 0.0670
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0254 | 2 psig (13.8 kPag): 0.0359 | 3 psig (20.7 kPag): 0.0439 | 4 psig (27.6 kPag): 0.0507 | 5 psig (34.5 kPag): 0.0567 | 6 psig (41.4 kPag): 0.0567 | 7 psig (48.3 kPag): 0.0671 | 8 psig (55.2 kPag): 0.0717 | 9 psig (62.1 kPag): 0.0761 | 10 psig (69 kPag): 0.0802 | 15 psig (103.4 kPag): 0.0982 | 20 psig (137.9 kPag): 0.1134 | 30 psig (206.9 kPag): 0.1389 | 40 psig (275.8 kPag): 0.1604 | 50 psig (344.8 kPag): 0.1793 | 60 psig (413.7 kPag): 0.1965 | 70 psig (482.7 kPag): 0.2122 | 80 psig (551.6 kPag): 0.2268 | 90 psig (620.6 kPag): 0.2406 | 100 psig (689.5 kPag): 0.2536
Specifications Connection A
10-32 UNF Male
Specifications Cv
0.0067
Specifications Material
Brass
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
17
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Taper
7.5 º
