Type RWA Reduced Wall Aluminum Flexible Metal Conduit (FMC)

Name: Type RWA Reduced Wall Aluminum Flexible Metal Conduit (FMC)
Brand: Anamet Electrical, Inc.
SKU: FLE-fa7090
Price: 139.99 USD
Availability: OutOfStock

SKU:FLE-fa7090

High-quality Type RWA Aluminum Flexible Conduit, UL Listed, with exceptional flexibility and crush resistance. Suitable for various applications.

$139.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

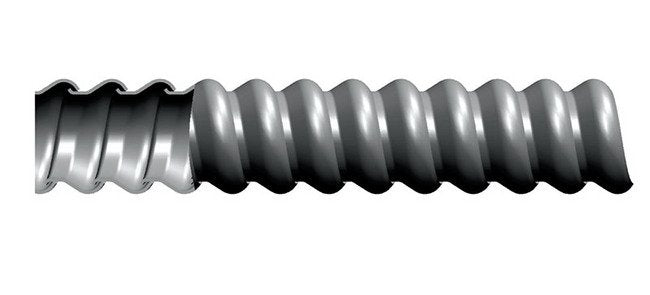

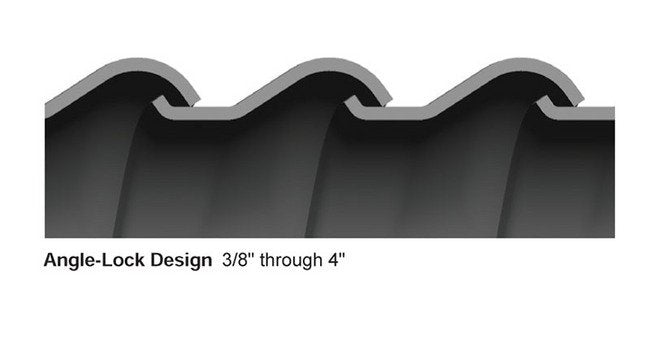

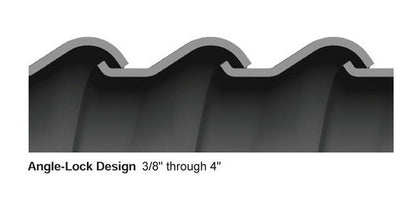

The Type RWA Reduced Wall Aluminum Flexible Metal Conduit (FMC) is crafted from continuously interlocked aluminum strip, meeting the highest industry standards. This UL Listed conduit, available in electrical trade sizes ranging from 3/8" to 4", offers exceptional flexibility, crush resistance, and a high temperature tolerance of up to +500°F. Easy to install and lightweight, this conduit is ideal for a range of applications, including exposed and concealed locations, elevator wiring, and more, in compliance with NEC regulations.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+500°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Light weight, easy to cut.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+50086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding.Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

6.25 in | 158.75 mm

Specifications Approx Weight Per 100 Ft

22 lbs | 9.98 kg

Specifications Core Material

Aluminum

Specifications Cross Reference

55-09-26-01 | 5605-24-00 | 69442 | ABR-14 | RWA-1-1/4

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

1.250 to 1.300 in | 31.750 to 33.020 mm

Specifications Jacket Material

None

Specifications Length

200 ft | 15.24 m

Specifications Outside Diameter

1.550 to 1.630 in | 39.370 to 41.402 mm

Specifications Packaging

Standard reel

Specifications Type

RWA
