Type RWA Reduced Wall Aluminum FMC Conduit
Type RWA Reduced Wall Aluminum FMC Conduit
SKU:FLE-24e92b
Type RWA Reduced Wall Aluminum FMC Conduit - UL Listed and crush resistant, ideal for electrical installations up to +500°F.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Type RWA Reduced Wall Aluminum FMC Conduit
$89.99
Quantity: 1
Claim Your Seller Account
Type RWA Reduced Wall Aluminum FMC Conduit
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

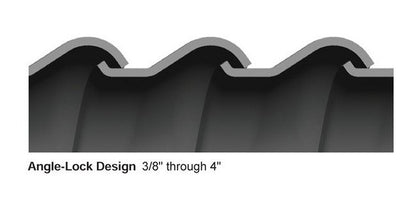

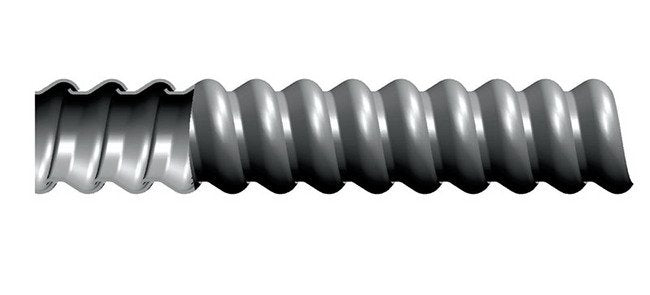

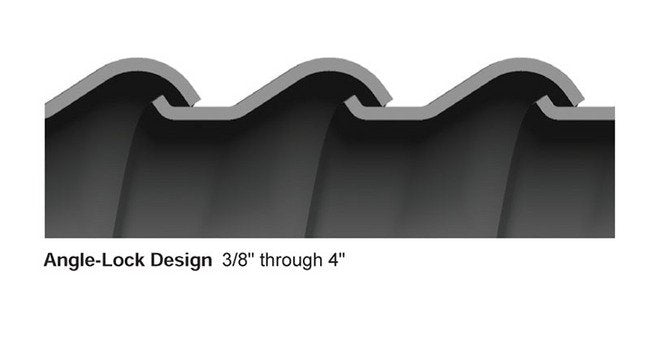

The Type RWA Reduced Wall Aluminum Flexible Metal Conduit (FMC) is a high-quality solution for electrical installations. Made of continuously interlocked aluminum strip, this UL Listed conduit is available in electrical trade sizes ranging from 3/8" to 4". With a lightweight design that is easy to cut, it meets the crush resistance requirements of UL1 and NEC 348. Approved for use in various applications, this conduit can withstand temperatures up to +500°F, making it suitable for both exposed and concealed locations, enclosed motor leads, elevators, and more.
Product Specifications
Application 0
Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+500°F Maximum Temperature
Installation 0
Uses standard flexible metal conduit connectors.Light weight, easy to cut.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+50086;F Maximum temperature.
Nec Articles 0
Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding.Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
3.0 in | 76.2 mm
Specifications Approx Weight Per 100 Ft
9.5 lbs | 4.31 kg
Specifications Core Material
Aluminum
Specifications Cross Reference
55-08-21-03 | 5602-30-00 | 69411 | ABR-11 | RWA-1/2
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
UL Certification
Specifications Inside Diameter
0.625 to 0.645 in | 15.875 to 16.383 mm
Specifications Jacket Material
None
Specifications Length
100 ft | 30.48 m
Specifications Outside Diameter
0.860 to 0.920 in | 21.844 to 23.368 mm
Specifications Packaging
Standard Coils
Specifications Type
RWA
