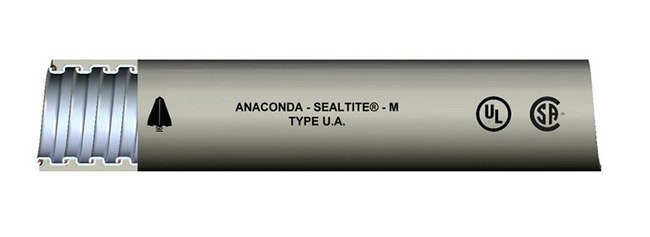

Type UA HD - LFMC Liquid Tight Metal Conduit, 3/4 in x 500 ft

Name: Type UA HD - LFMC Liquid Tight Metal Conduit, 3/4 in x 500 ft
Brand: Anamet Electrical, Inc.
SKU: LIQ-84037c
Price: 799.99 USD
Availability: OutOfStock

SKU:LIQ-84037c

UL Listed Liquid Tight Metal Conduit with Steel Core, UV-Resistant PVC Jacket. Meets NEC Standards.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Type UA HD Liquid Tight Flexible Metal Conduit is designed with a hot-dipped zinc galvanized steel core for superior crush and corrosion resistance. Its durable PVC jacket is UV-resistant, heat-resistant, and protects against oil and chemicals. This conduit is UL Listed, suitable for direct burial and concrete installations, and complies with various NEC articles for IT equipment, equipment grounding, and hazardous locations. With a temperature range of -40°F to +176°F, this conduit is perfect for demanding environments. Available in trade sizes from 3/8 to 4 inches, it meets NFPA 79 standards and comes with ANACONDA SEALTITE® Fittings for corrosion resistance.

Product Specifications

Specifications Approx Inside Bend Radius

5.0 in | 127 mm

Specifications Approx Weight Per 100 Ft

43 lbs | 19.5 kg

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Inside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Length

500 ft | 152.4 m

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Small Reels

Type UA HD - LFMC Liquid Tight Metal Conduit, 3/4 in x 500 ft
