Type UI - Capillary Armor Stainless Steel Stripwound Hose

Name: Type UI - Capillary Armor Stainless Steel Stripwound Hose
Brand: Anamet Electrical, Inc.
SKU: IND-9fd3d2
Price: 129.99 USD
Availability: OutOfStock

SKU:IND-9fd3d2

Durable Type UI Stainless Steel Stripwound Hose with PVC/Silicone options, crush-resistant, RoHS & WEEE compliant, ideal for high-temp applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

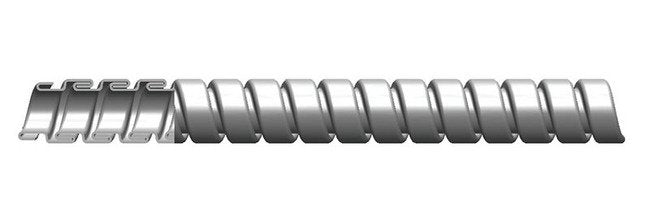

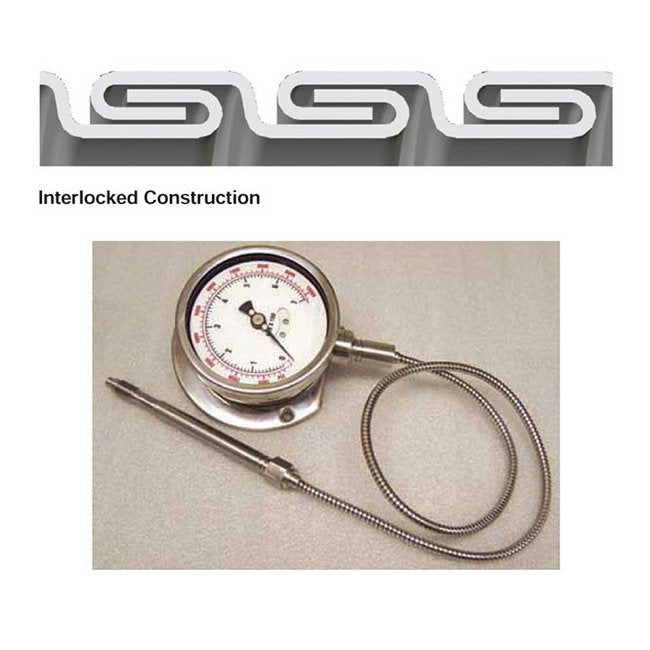

The Type UI - Capillary Armor Stainless Steel Stripwound Hose is expertly constructed with a Type 304 stainless steel core, providing exceptional crush and corrosion resistance. This durable product maintains its shape without springing open or unwinding. Available with optional PVC, Silicone, PTFE, or Thermoplastic Rubber jackets. Suitable for high-temperature applications up to 1800ºF, and offers protection for wiring, capillary tubing, control cables, and more. Compliant with RoHS and WEEE standards, making it a reliable choice for industrial settings.

Product Specifications

Application 0

Flexible with High Crush and Corrosion ResistanceProduct Will Not Spring Open or Unwind 1800ºF Maximum TemperatureFor applications with a max temperature of 1800ºFCasingsArmorProtection for wiring and capillary tubingControl cablesBar Dispenser casing

Specifications Approx Inside Bend Radius

1.5 in | 38.1 mm

Specifications Approx Weight Per 100 Ft

7.3 lbs | 3.31 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.245 to 0.260 in | 6.223 to 6.604 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

800 ft | 243.84 m

Specifications Nominal Size

1/4 in | 6 mm

Specifications Note

Other sizes available on special order.Available in brass, galvanized steel and aluminum.

Specifications Outside Diameter

0.340 to 0.355 in | 8.636 to 9.017 mm

Specifications Packaging

Standard Reels

Specifications Type

Type UI - Capillary Armor Stainless Steel Stripwound Hose
