Type UI Capillary Armor Stainless Steel Stripwound Hose - 7/16in, 500ft

Name: Type UI Capillary Armor Stainless Steel Stripwound Hose - 7/16in, 500ft
Brand: Anamet Electrical, Inc.
SKU: IND-dfe70b
Price: 279.99 USD
Availability: OutOfStock

SKU:IND-dfe70b

Highly crush and corrosion-resistant Type UI Stainless Steel Stripwound Hose, suitable for industrial applications. RoHS & WEEE compliant.

$279.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

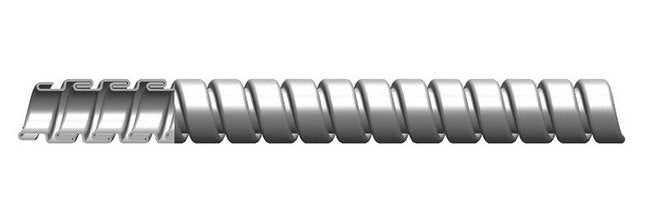

The Type UI Capillary Armor Stainless Steel Stripwound Hose offers exceptional crush and corrosion resistance with a Type 304 stainless steel core. This flexible hose is designed to withstand high pressures and temperatures up to 1800ºF, making it ideal for industrial applications. Available in various materials such as stainless steel, brass, galvanized steel, and aluminum, with optional PVC, Silicone, PTFE, or Thermoplastic Rubber jackets. RoHS and WEEE compliant, ensuring environmental responsibility and safety.

Product Specifications

Application 0

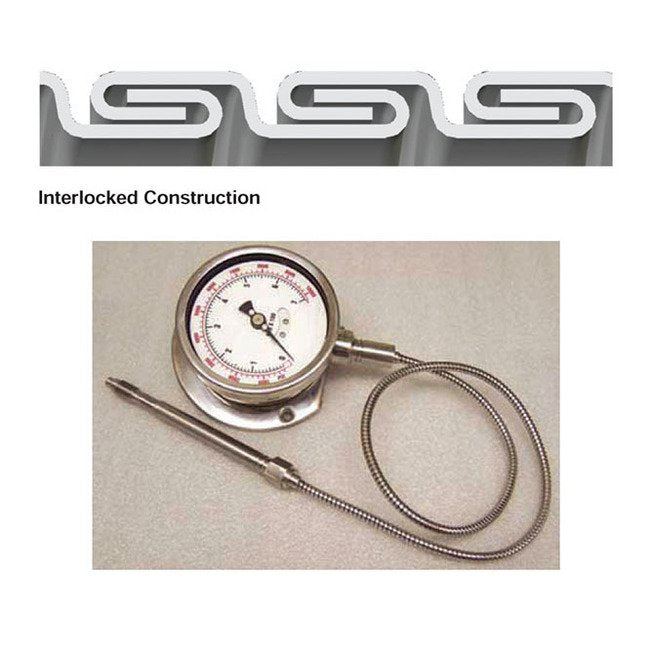

Flexible with High Crush and Corrosion ResistanceProduct Will Not Spring Open or Unwind 1800ºF Maximum TemperatureFor applications with a max temperature of 1800ºFCasingsArmorProtection for wiring and capillary tubingControl cablesBar Dispenser casing

Specifications Approx Inside Bend Radius

2.5 in | 63.5 mm

Specifications Approx Weight Per 100 Ft

14.7 lbs | 6.67 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.432 to 0.452 in | 10.973 to 11.481 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

500 ft | 152.4 m

Specifications Nominal Size

7/16 in | 11 mm

Specifications Note

Other sizes available on special order.Available in brass, galvanized steel and aluminum.

Specifications Outside Diameter

0.547 to 0.567 in | 13.894 to 14.402 mm

Specifications Packaging

Standard Reels

Specifications Type

Type UI Capillary Armor Stainless Steel Stripwound Hose - 7/16in, 500ft
