Type ZHUA LFMC - Zero Halogen Low Smoke Liquid-Tight Flexible Metal Conduit

Name: Type ZHUA LFMC - Zero Halogen Low Smoke Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-8c98ec
Price: 129.99 USD
Availability: OutOfStock

SKU:LIQ-8c98ec

Type ZHUA LFMC: Zero Halogen, Low Smoke, Liquid-Tight Flexibility. UL Listed & CSA Certified.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

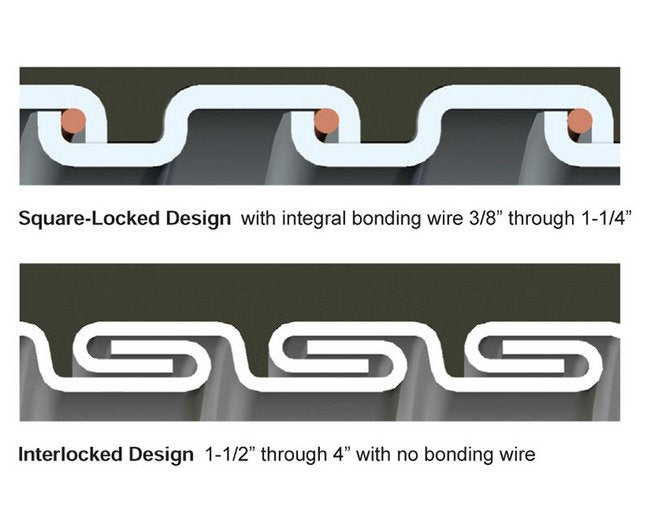

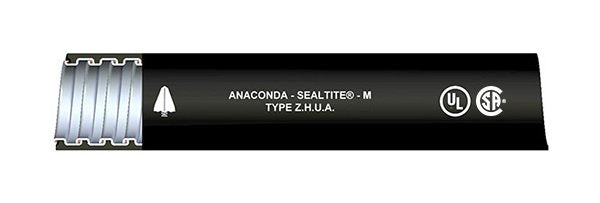

The Type ZHUA LFMC combines superior performance with safety features for both consumer and institutional needs. Featuring a Zero Halogen jacket with integral bonding wire, this conduit offers flexible, liquid-tight raceway for wiring. Constructed of interlocked hot-dipped zinc galvanized steel core and a flame-retardant, low smoke, and zero halogen TPU jacket, it meets UL Listed & CSA Certified standards. Approved for hazardous locations, direct burial, and concrete use, with an IP 67 rating when installed with approved connectors, this LFMC ensures reliable performance in a range of environments.

Product Specifications

Application 0

For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.

Meets Or Exceeds The Following Standards 0

Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Weight Per 100 Ft

29 lbs | 13.15 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

6702-30-00 | 88111 | LSZH | ZHLA-11

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Bend Radius

3.5 in | 88.9 mm

Specifications Inside Diameter

0.622 to 0.642 in | 15.799 to 16.307 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

100 ft | 30.48 m

Specifications Note

Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.

Specifications Outside Diameter

0.822 to 0.840 in | 20.879 to 21.336 mm

Specifications Packaging

Standard Carton

Specifications Type

ZHUA
