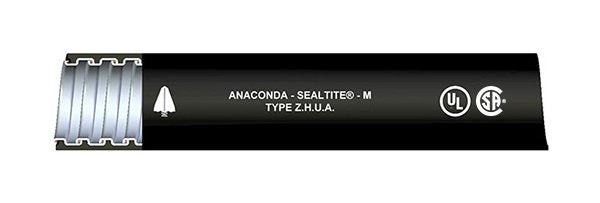

Type ZHUA Liquid Tight Flexible Metal Conduit (LFMC)

Name: Type ZHUA Liquid Tight Flexible Metal Conduit (LFMC)
Brand: Anamet Electrical, Inc.
SKU: LIQ-2ffe64
Price: 79.99 USD
Availability: OutOfStock

SKU:LIQ-2ffe64

Type ZHUA LFMC: Flexible, Flame Retardant, UL Listed. Ideal for hazardous locations. Meets ASTM standards.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

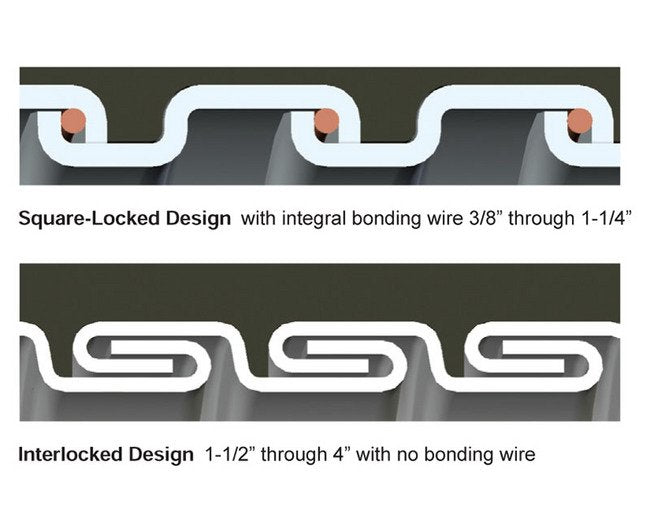

The Type ZHUA LFMC is a premier solution providing a flexible liquid-tight raceway for wiring, constructed with continuously interlocked hot-dipped zinc galvanized steel core. Featuring a LOW SMOKE, ZERO HALOGEN TPU jacket, it offers superior flame retardant properties. UL Listed and IP 67 rated, this conduit is suitable for a wide range of applications from hazardous locations to direct burial. With industry certifications and compliance with stringent standards like ASTM E162 and ASTM E662, it exceeds expectations in safety and performance.

Product Specifications

Application 0

For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.

Meets Or Exceeds The Following Standards 0

Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Weight Per 100 Ft

255 lbs | 115.67 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

6709-22-00 | 88182 | LSZH | ZHLA-18

Specifications Electrical Trade Size

3 in | 78 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Bend Radius

15 in | 381 mm

Specifications Inside Diameter

3.070 to 3.100 in | 77.978 to 78.740 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

25 ft | 7.62 m

Specifications Note

Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.

Specifications Outside Diameter

3.460 to 3.500 in | 87.884 to 88.900 mm

Specifications Packaging

Standard Carton

Specifications Type

ZHUA
