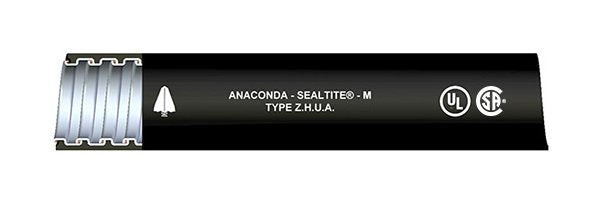

Type ZHUA Zero Halogen LFMC - Liquid-Tight Flexible Metal Conduit

Name: Type ZHUA Zero Halogen LFMC - Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-8f1eb4
Price: 289.99 USD
Availability: OutOfStock

SKU:LIQ-8f1eb4

Premium Type ZHUA Zero Halogen LFMC - Flexible, Flame-Retardant, UL Listed

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

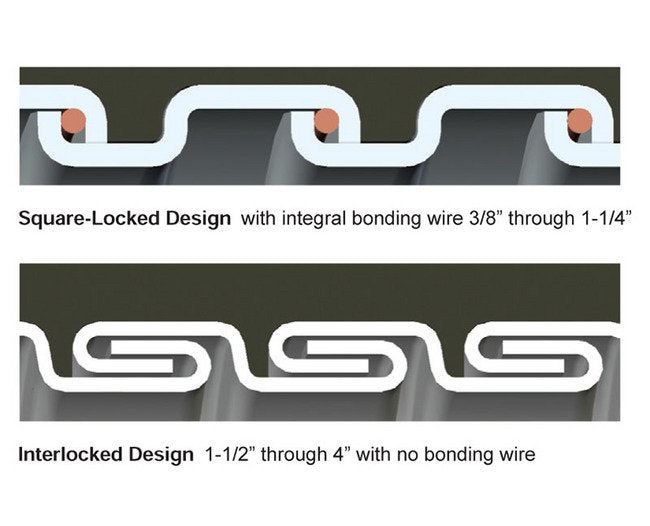

The Type ZHUA Zero Halogen Liquid-Tight Flexible Metal Conduit (LFMC) is a premium solution for wiring applications requiring low smoke, low flame spread, and zero halogen emissions. Featuring a galvanized steel core with an integral bonding wire, this conduit ensures flexibility and durability. Its thermoplastic polyurethane (TPU) jacket is sunlight resistant and flame-retardant, offering superior protection. UL Listed and CSA Certified, this conduit is IP 67 rated when paired with approved end connectors. Suitable for a wide range of installations, it complies with UL Standard 360 and NEC Article 350, making it ideal for hazardous locations and direct burial applications.

Product Specifications

Application 0

For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.

Meets Or Exceeds The Following Standards 0

Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Weight Per 100 Ft

73 lbs | 33.11 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

6704-30-00 | 88132 | LSZH | ZHLA-13

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Bend Radius

6.0 in | 152.4 mm

Specifications Inside Diameter

1.041 to 1.066 in | 26.441 to 27.076 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

400 ft | 121.92 m

Specifications Note

Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Small Reels

Specifications Type

ZHUA

Type ZHUA Zero Halogen LFMC - Liquid-Tight Flexible Metal Conduit
