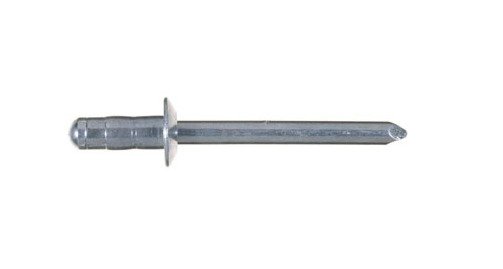

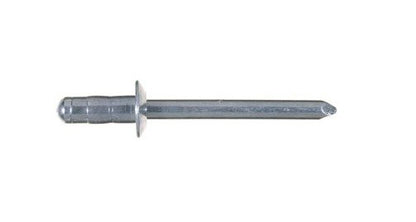

U-Fix 11mm Body Length All Steel Dome Rivet
U-Fix 11mm Body Length All Steel Dome Rivet
SKU:UFI-4cc905
Versatile U-Fix 11mm Dome Rivet with low carbon steel construction, zinc-plated finish, and high shear/tensile forces for reliable performance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
U-Fix 11mm Body Length All Steel Dome Rivet
$45.99
Quantity: 1
Claim Your Seller Account
U-Fix 11mm Body Length All Steel Dome Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The U-Fix 11mm Body Length All Steel Dome Head Rivet is a versatile and durable fastener designed for various applications. Constructed with low carbon steel and zinc-plated chromium VI free finishes on both the body and mandrel, this rivet offers exceptional strength and corrosion resistance. With a nominal shear force of 200 kgf and a nominal tensile force of 240 kgf, it ensures reliable performance. Ideal for main cabin interior applications, this rivet provides a secure multi-grip function and meets stringent industry standards.
Product Specifications
Nominal Dimensions Body Length
11.0 mm | 0.433 in
Nominal Dimensions Diameter
4.0 mm | 5/12 in
Nominal Dimensions Drillhole Size
4.13 to 4.23 mm | 0.163 to 0.167 in
Nominal Dimensions Head Diameter
8.1 mm | 0.319 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
2.73 mm | 0.107 in
Nominal Dimensions Maximum Grip Range
5.0 mm | 0.197 in
Nominal Dimensions Minimum Grip Range
1.4 mm | 0.055 in
Nominal Forces Nominal Shear Force
200 kgf | 440 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
