U-Fix 3.2mm Aluminum Steel Snap Head Rivet
U-Fix 3.2mm Aluminum Steel Snap Head Rivet
SKU:UFI-783dd4
High-quality U-Fix Aluminum Steel Snap Head Rivet for reliable fastening in industrial applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
U-Fix 3.2mm Aluminum Steel Snap Head Rivet
$25.99
Quantity: 1
Claim Your Seller Account
U-Fix 3.2mm Aluminum Steel Snap Head Rivet
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

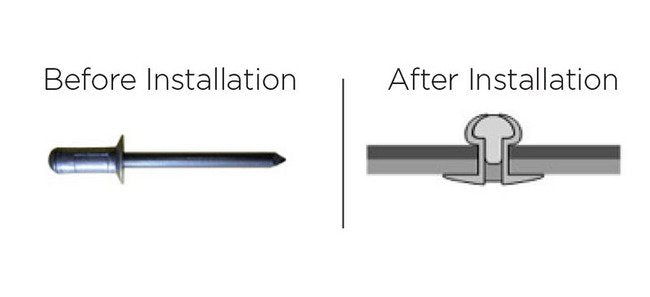

The U-Fix Aluminum Steel Snap Head Rivet is a high-quality fastening solution designed for precision and durability. Constructed with Aluminum Alloy ALmg 2.5 body material and a low carbon steel mandrel finished with Zinc Plated Chromium (Cr) VI Free, it ensures reliable performance. With a nominal shear force of 75 kgf and a nominal tensile force of 104 kgf, it offers exceptional strength for various applications. The rivet features a 3.2mm diameter, 8.0mm body length, and a snap head design for easy installation. Perfect for industrial, construction, and automotive use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
8.0 mm | 0.315 in
Nominal Dimensions Diameter
3.2 mm | 1.8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
5.2 mm | 0.205 in
Nominal Dimensions Head Thickness
1.0 mm | 0.039 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
4.8 mm | 0.189 in
Nominal Dimensions Minimum Grip Range
0.8 mm | 0.031 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Snap Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
