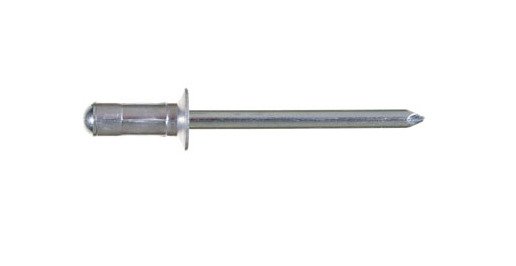

U-Fix 4.0mm Aluminum Steel 120 Deg Countersunk Head Rivet
U-Fix 4.0mm Aluminum Steel 120 Deg Countersunk Head Rivet
SKU:UFI-5db026
Versatile U-Fix 4.0mm Aluminum Steel Rivet for secure and reliable fastening in aircraft interiors.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
U-Fix 4.0mm Aluminum Steel 120 Deg Countersunk Head Rivet
$39.99
Quantity: 1
Claim Your Seller Account
U-Fix 4.0mm Aluminum Steel 120 Deg Countersunk Head Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The U-Fix 4.0mm Aluminum Steel 120 Degree Countersunk Head Rivet is a versatile fastener designed for various applications within aircraft interiors, specifically the main cabin. Constructed with Aluminum Alloy ALmg 2.5 body material and a Zinc Plated Chromium (Cr) VI Free low carbon steel mandrel, this rivet offers excellent multi-grip functionality. With a diameter of 4.0mm and a body length of 11.3mm, it provides a secure grip range from 2.8mm to 7.9mm. Meeting rigorous industry standards for nominal forces, including a nominal shear force of 102 kgf and a tensile force of 136 kgf, this U-Fix rivet ensures reliable and durable fastening in demanding environments.
Product Specifications
Nominal Dimensions Body Length
11.3 mm | 0.445 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.083 in | 0.088 in
Nominal Dimensions Maximum Grip Range
7.9 mm | 0.311 in
Nominal Dimensions Minimum Grip Range
2.8 mm | 0.110 in
Nominal Forces Nominal Shear Force
102 kgf | 225 lbf
Nominal Forces Nominal Tensile Force
136 kgf | 299 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
8000
Technical Specs Head Style
Countersunk Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
