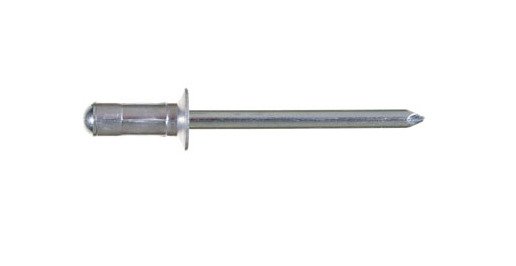

U-Fix 4.0mm Aluminum Steel 120 Degree Countersunk Head Rivet

Name: U-Fix 4.0mm Aluminum Steel 120 Degree Countersunk Head Rivet
Brand: Ornit USA
SKU: UFI-1ea185
Price: 29.99 USD
Availability: OutOfStock

SKU:UFI-1ea185

High-performance 4.0mm Aluminum Steel Rivet for secure and versatile fastening in interior applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

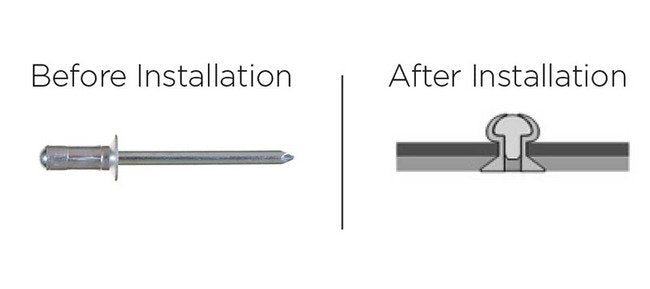

The U-Fix 4.0mm Aluminum Steel 120 Degree Countersunk Head Rivet is a versatile and high-performance fastener designed for various applications. Constructed with Aluminum Alloy ALmg 2.5 body material and a low carbon steel mandrel, it offers exceptional strength and durability. With a diameter of 4.0mm, a body length of 12.7mm, and a grip range of 4.3mm to 9.5mm, it meets rigorous industry standards for shear and tensile forces. Ideal for interior main cabin applications, this rivet ensures secure and reliable fastening.

Product Specifications

Nominal Dimensions Body Length

12.7 mm | 0.500 in

Nominal Dimensions Diameter

4.0 mm | 5/32 in

Nominal Dimensions Drillhole Size

4.1 mm | 0.161 in

Nominal Dimensions Head Diameter

6.3 mm | 0.248 in

Nominal Dimensions Head Thickness

0.90 mm | 0.035 in

Nominal Dimensions Mandrel Diameter

2.11 mm | 2.25 mm | 0.083 in | 0.088 in

Nominal Dimensions Maximum Grip Range

9.5 mm | 0.374 in

Nominal Dimensions Minimum Grip Range

4.3 mm | 0.169 in

Nominal Forces Nominal Shear Force

102 kgf | 225 lbf

Nominal Forces Nominal Tensile Force

136 kgf | 299 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 2.5

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

6000

Technical Specs Head Style

Countersunk Head

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel
