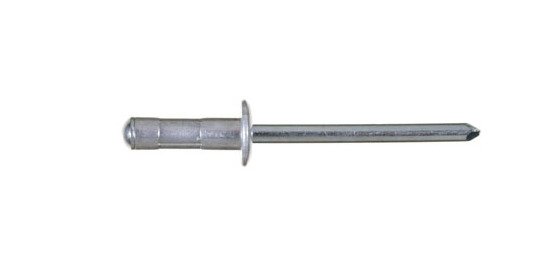

U-Fix 4.0mm Aluminum Steel Dome Head Rivets
U-Fix 4.0mm Aluminum Steel Dome Head Rivets
SKU:UFI-36e7cd
Versatile U-Fix 4.0mm Aluminum Steel Dome Head Rivets for reliable and durable fastening in cabins. Nominal shear force: 116 kgf, nominal tensile force: 170 kgf.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
U-Fix 4.0mm Aluminum Steel Dome Head Rivets
$29.99
Quantity: 1
Claim Your Seller Account
U-Fix 4.0mm Aluminum Steel Dome Head Rivets
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The U-Fix 4.0mm Aluminum Steel Dome Head Rivets are expertly crafted with an Aluminum Alloy ALmg 2.5 body and a Low Carbon Steel mandrel. With a versatile multi-grip function, these rivets deliver exceptional performance in various applications within cabins. Built to withstand heavy forces, they offer a nominal shear force of 116 kgf and a nominal tensile force of 170 kgf, ensuring reliable and durable fastening. Their precise dimensions and natural finish make them ideal for interior applications, meeting stringent industry standards for quality and performance.
Product Specifications
Nominal Dimensions Body Length
6.8 mm | 0.268 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.9 mm | 0.311 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.083 in | 0.088 in
Nominal Dimensions Maximum Grip Range
3.2 mm | 0.126 in
Nominal Dimensions Minimum Grip Range
0.5 mm | 0.020 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
8000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
