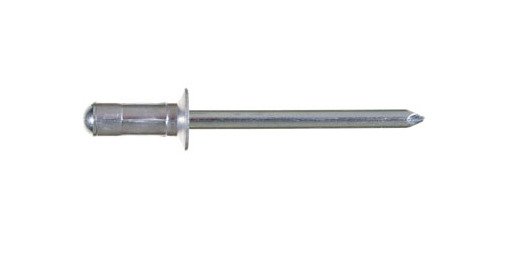

U-Fix 4.0mm Aluminum Steel Rivet
U-Fix 4.0mm Aluminum Steel Rivet
SKU:UFI-cabd87
Versatile U-Fix 4.0mm Aluminum Steel Rivet for secure and flush fastening in interior applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
U-Fix 4.0mm Aluminum Steel Rivet
$29.99
Quantity: 1
Claim Your Seller Account
U-Fix 4.0mm Aluminum Steel Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The U-Fix 4.0mm Aluminum Steel 120 Degree Countersunk Head Rivet is a reliable and versatile fastener designed for a range of interior applications. Constructed with Aluminum Alloy ALmg 2.5 body and low carbon steel mandrel, it offers exceptional strength and durability. With a nominal shear force of 102 kgf and a nominal tensile force of 136 kgf, this rivet ensures secure and long-lasting fastening. The 120-degree countersunk head provides a flush finish, making it ideal for various cabin assembly projects. Trust the U-Fix rivet for dependable performance and ease of installation.
Product Specifications
Nominal Dimensions Body Length
9.7 mm | 0.382 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.083 in | 0.088 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
102 kgf | 225 lbf
Nominal Forces Nominal Tensile Force
136 kgf | 299 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
7000
Technical Specs Head Style
Countersunk Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
