U-Fix 4.0mm Large Head Aluminum Steel Rivet
U-Fix 4.0mm Large Head Aluminum Steel Rivet
SKU:UFI-9782e4
High-quality U-Fix 4.0mm Large Head Aluminum Steel Rivet for secure and versatile fastening in interior applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
U-Fix 4.0mm Large Head Aluminum Steel Rivet
$29.99
Quantity: 1
Claim Your Seller Account
U-Fix 4.0mm Large Head Aluminum Steel Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

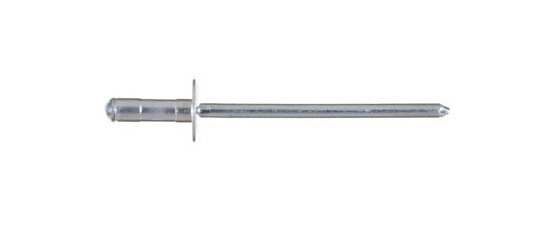

The U-Fix 4.0mm Large Head Aluminum Steel Rivet is a high-quality fastener designed for various applications in main cabin interiors. With a durable aluminum alloy body and a low carbon steel mandrel, it offers exceptional strength and reliability. The large head design ensures secure fastening, while the zinc-plated chromium mandrel finish enhances corrosion resistance. With a grip range of 3.2mm to 7.9mm, this rivet meets stringent procurement standards making it ideal for government and institutional use.
Product Specifications
Nominal Dimensions Body Length
11.1 mm | 0.437 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
9.5 mm | 0.374 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.083 in | 0.088 in
Nominal Dimensions Maximum Grip Range
7.9 mm | 0.311 in
Nominal Dimensions Minimum Grip Range
3.2 mm | 0.126 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 375 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Large Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
