U-Fix 4.0mm Large Head Rivet (Pack of 4000)
U-Fix 4.0mm Large Head Rivet (Pack of 4000)
SKU:UFI-2fd222
Premium U-Fix 4.0mm Large Head Rivet with Aluminum Steel body, strong grip range, and high tensile force. Pack of 4000.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
U-Fix 4.0mm Large Head Rivet (Pack of 4000)
$199.99
Quantity: 1
Claim Your Seller Account
U-Fix 4.0mm Large Head Rivet (Pack of 4000)
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

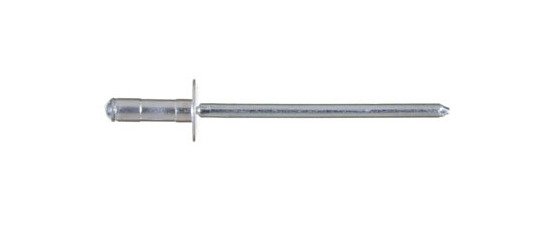

The U-Fix 4.0mm Large Head Rivet is a premium fastening solution crafted from Aluminum Alloy ALmg 2.5 body material and Low Carbon Steel mandrel, providing exceptional strength and corrosion resistance. With a large head design and precise 4.0mm diameter, this rivet ensures secure multi-grip function for various applications. With nominal shear force of 116kgf and nominal tensile force of 170kgf, it meets stringent government procurement standards and is ideal for interior cabin applications.
Product Specifications
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
9.5 mm | 0.374 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.083 in | 0.088 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
6.4 mm | 0.252 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 375 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Large Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
