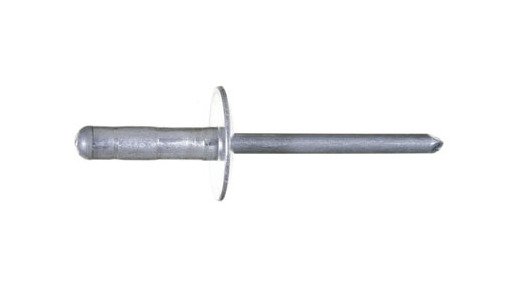

U-Fix Aluminum/Aluminum Rivet with X-Large Head - 15.1mm Body Length
U-Fix Aluminum/Aluminum Rivet with X-Large Head - 15.1mm Body Length
SKU:UFI-cea6dc
Versatile U-Fix Aluminum/Aluminum Rivet - Ideal for main cabin, side frame, & rails. High-quality material & secure grip for automotive/trailer applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
U-Fix Aluminum/Aluminum Rivet with X-Large Head - 15.1mm Body Length
$45.99
Quantity: 1
Claim Your Seller Account
U-Fix Aluminum/Aluminum Rivet with X-Large Head - 15.1mm Body Length
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The U-Fix Aluminum/Aluminum X-Large Head Rivet is a versatile and durable fastener designed for various applications in main cabin, side frame, and securing rails. With a multi-grip function, this rivet ensures secure connections. Made from high-quality Aluminum Alloy ALmg 1.0 with a natural finish, it offers excellent shear and tensile forces, meeting the stringent standards of automotive and trailer industries. With a body length of 15.1mm and a maximum grip range of 11.1mm, this rivet provides reliable fastening solutions.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
15.1 mm | 0.594 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.85 mm | 0.624 in
Nominal Dimensions Head Thickness
1.75 mm | 0.069 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
4.8 mm | 0.189 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
150 kgf | 330 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 1.0
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 5.0
