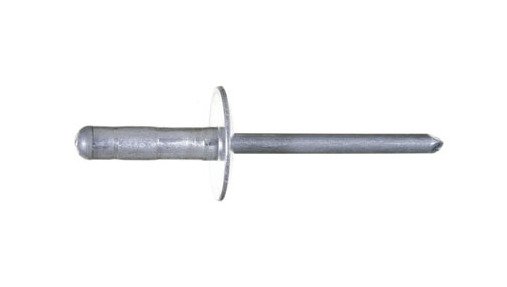

U-Fix Aluminum Rivet (10.3mm Body Length, X-Large Head)
U-Fix Aluminum Rivet (10.3mm Body Length, X-Large Head)
SKU:UFI-ce68a1
Versatile U-Fix Aluminum Rivet with 10.3mm body length and extra-large head for secure multi-grip installations in automotive settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
U-Fix Aluminum Rivet (10.3mm Body Length, X-Large Head)
$29.99
Quantity: 1
Claim Your Seller Account
U-Fix Aluminum Rivet (10.3mm Body Length, X-Large Head)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

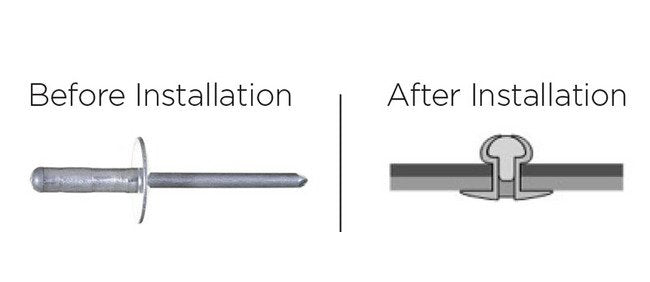

The U-Fix Aluminum Rivet with a body length of 10.3mm and an extra-large head is a versatile and durable fastener designed for a range of applications. Made from high-quality Aluminum Alloy ALmg 1.0, it offers exceptional multi-grip functionality, ensuring secure installations in various settings. With a nominal shear force of 100 kgf and a nominal tensile force of 150 kgf, this rivet excels in automotive applications, particularly for securing components within vehicles. Its precise dimensions and natural finish make it a reliable choice for interior cabin, side frame, and rail securing needs.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
10.3 mm | 0.406 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.85 mm | 0.624 in
Nominal Dimensions Head Thickness
1.75 mm | 0.069 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
150 kgf | 330 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 1.0
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 5.0
