U-Fix Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet
U-Fix Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet
SKU:UFI-be02f4
Versatile U-Fix Rivet: Aluminum/Stainless Steel construction, 120-Degree Countersunk Head, ideal for secure fastening in interior applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
U-Fix Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet
$39.99
Quantity: 1
Claim Your Seller Account
U-Fix Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

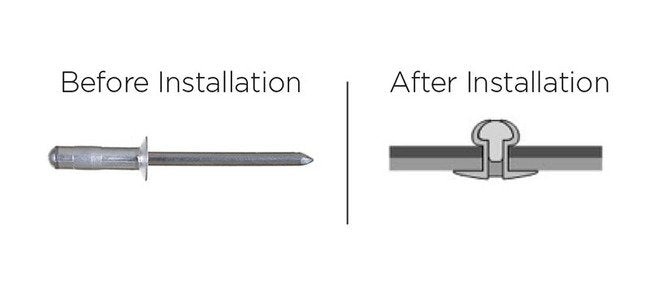

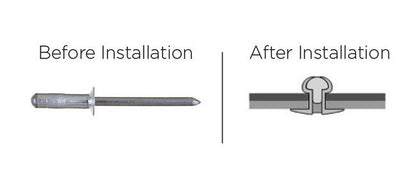

Meet your fastening needs with the versatile U-Fix Aluminum/Stainless Steel Rivet. Featuring a 120-degree countersunk head design, this rivet offers exceptional multi-grip functionality for various applications, ensuring secure and durable fastening. Crafted with Aluminum Alloy ALmg 2.5 body and Stainless Steel AISI 430/434 mandrel, it provides reliable performance in interior and main cabin applications. With a diameter of 4.0mm and a body length of 12.7mm, this rivet meets stringent technical specs for shear and tensile forces, making it an ideal choice for both consumer and institutional use.
Product Specifications
Nominal Dimensions Body Length
12.7 mm | 0.500 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
2.25 mm | 0.089 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
4.3 mm | 0.169 in
Nominal Forces Nominal Shear Force
102 kgf | 224 lbf
Nominal Forces Nominal Tensile Force
136 kgf | 299 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
120 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
